Campaign - Replace The Left And Right Fuel Level Sensor
SI B16 07 12Fuel Supply Systems
August 2012
Technical Service
PERFORM THE PROCEDURE OUTLINED IN THIS SERVICE INFORMATION ON ALL AFFECTED VEHICLES BEFORE CUSTOMER DELIVERY OR THE NEXT TIME THEY ARE IN THE SHOP FOR MAINTENANCE OR REPAIRS.
SUBJECT
Service Action: Replace the Left and Right Fuel Level Sensor
MODEL
E70 with N52K and N62TU engines
E71 with N54 and N63 engines
Vehicles produced from October 1st, 2007 to October 1st, 2009
SITUATION
After refueling, the fuel gauge will display an incorrect fuel level. When this occurs, the fuel gauge shows the fuel level as 3/4 full.
CAUSE
Due to a high proportion of ethanol in the fuel, the internal mechanisms of the fuel level sensors may swell. This may inhibit the movement of one or both of the fuel level sensors.
AFFECTED VEHICLES
In order to determine whether a specific vehicle has had this Service Action or Recall Campaign completed or is affected by this Service Action, first check the B-pillar label for code number 633. If code number 633 has been punched out, the campaign has already been performed. If code number 633 has not been punched out, it will be necessary to utilize the "Service Menu" of DCSnet (Dealer Communication System) or the Key Reader. Based on the response of the system, either proceed with the corrective action or take no further action.
PROCEDURE
Replace the left and right fuel level sensors as per Repair Instructions 16 12 000 and 16 12 001.
PARTS INFORMATION
LABEL INSTRUCTIONS

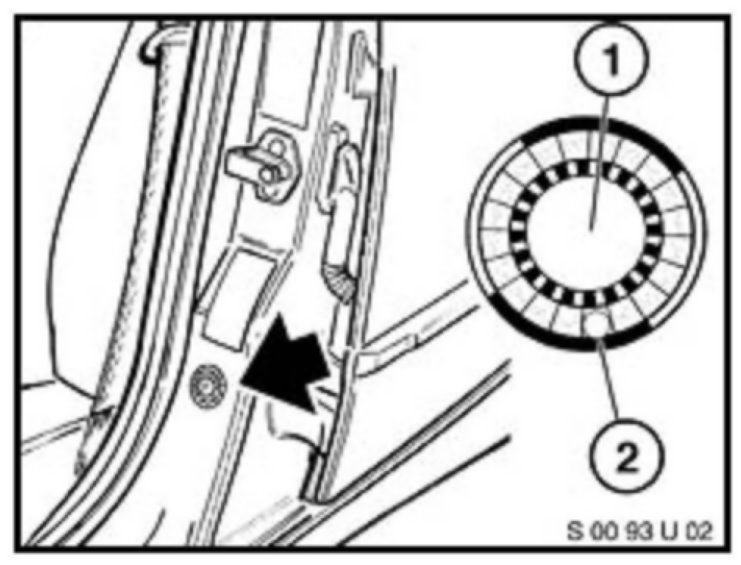

This Service Action has been assigned code number 633. After the vehicle has been checked and/or corrected, obtain a label (SD 92-417) and:
A. Emboss your BMW center warranty number in the middle of the label (1);
B. Punch out code number 633 (2), printed on the label; and
C. Affix the label to the B-pillar as shown.
If the vehicle already has a label from a previous Service Action, affix the new label next to the old one.
Do not affix one label on top of another one because a number from an underlying label could appear in the punched-out hole of the new label.
