Windshield Washer Spray Nozzle: Adjustments

61 71 004 Adjusting Windscreen Washer Jets

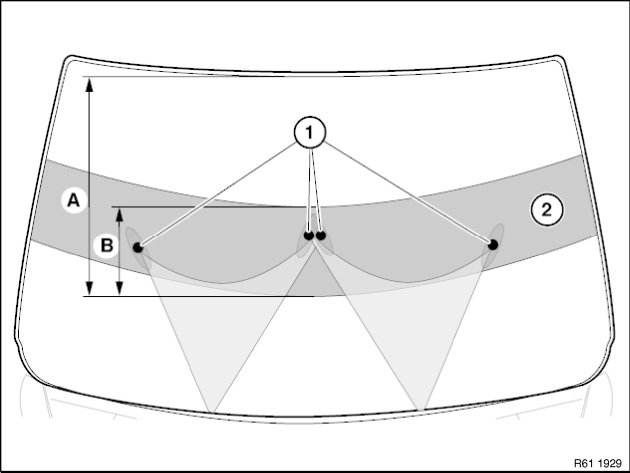

Mark tolerance range (2) with adhesive tape (A=500 mm / B=200 mm).
Actuate windscreen washer system.
Contact points (1) must be in tolerance range (2).

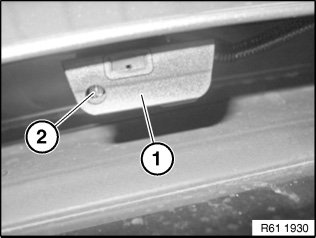

If necessary, adjust left or right washer jet (1) by way of screw (2).

NOTE:
If necessary, remove adhesive residue from windscreen.
Fill up with washer fluid.
