65 20 150 Removing and Installing/Replacing Back-Up Aerial/Antenna

65 20 150 - Removing and installing/replacing back-up aerial/antenna





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove rear right rest side section Removing and Installing/Replacing Rest Side Section on Left or Right Rear Seat Backrest

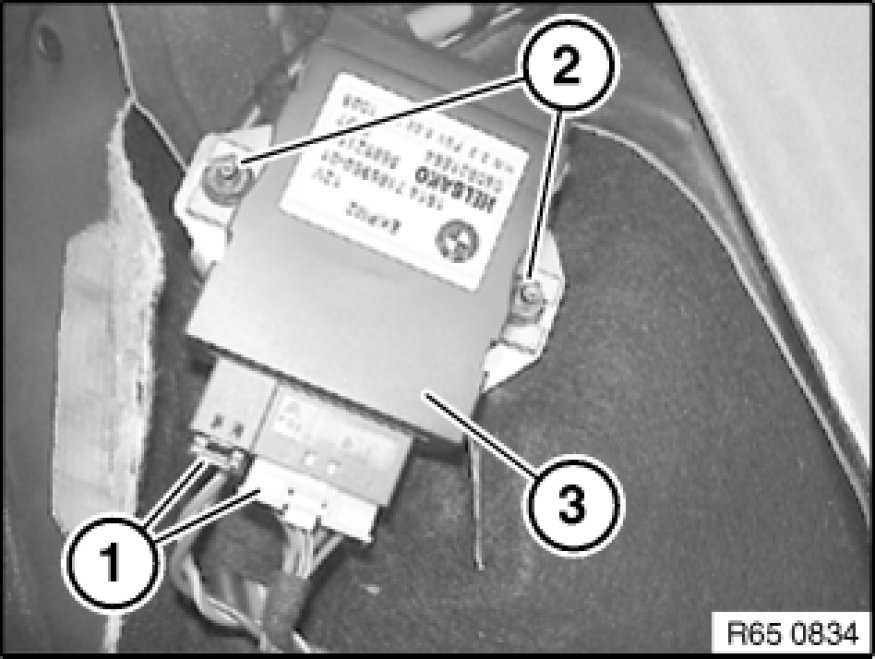

Disconnect plug connection (1).
Release screws (2) and remove back-up aerial/antenna (3).
