Removing and Installing/Replacing Left or Right Tail Light (on Rear Lid)

63 21 183 - Removing and installing/replacing left or right tail light (on rear lid)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Release catch (1) and fold insert (2) downwards.





Open cutout (1) of insulating mat (2).





Disconnect plug connection (1).
Unlock locking clip (2) in direction of arrow and remove socket housing (3) from rear light (4).





Slacken nut (1) until clamping jaw (2) on rear lid (3) can be unlatched.
Tightening torque 63 21 1AZ Specifications.
Fold rear light (4) outwards out of rear lid (3) and remove.

Installation Note:
Make sure clamping jaw (2) is correctly seated on rear lid (3).
Position lugs (5) of rear light (4) exactly over side edge of rear lid (3).





Installation Note:

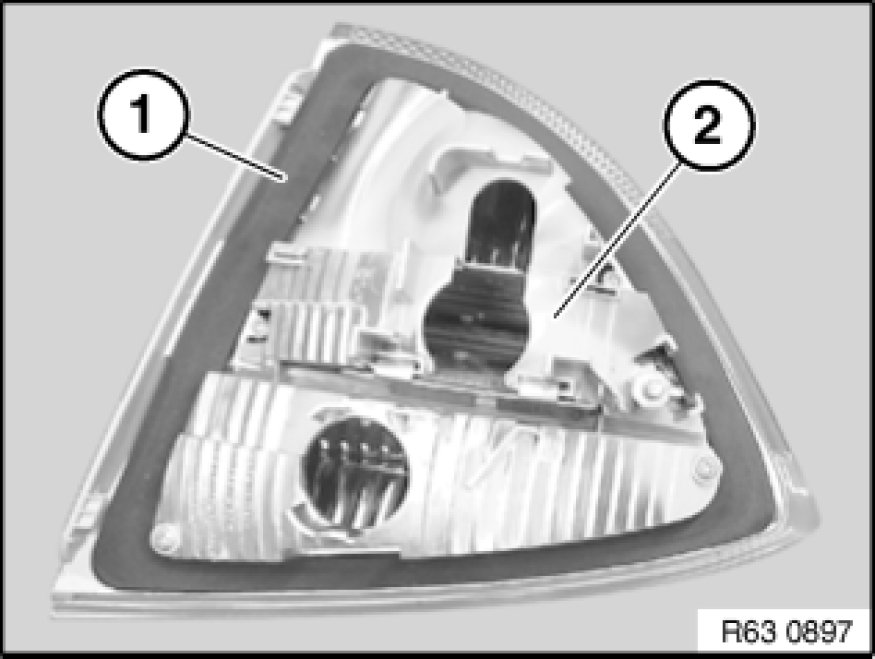

Make sure seal (1) is correctly seated on rear light (2).





Replacement:
If necessary, remove bulbs Service and Repair.
