335xi Coupe AWD (E92) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System

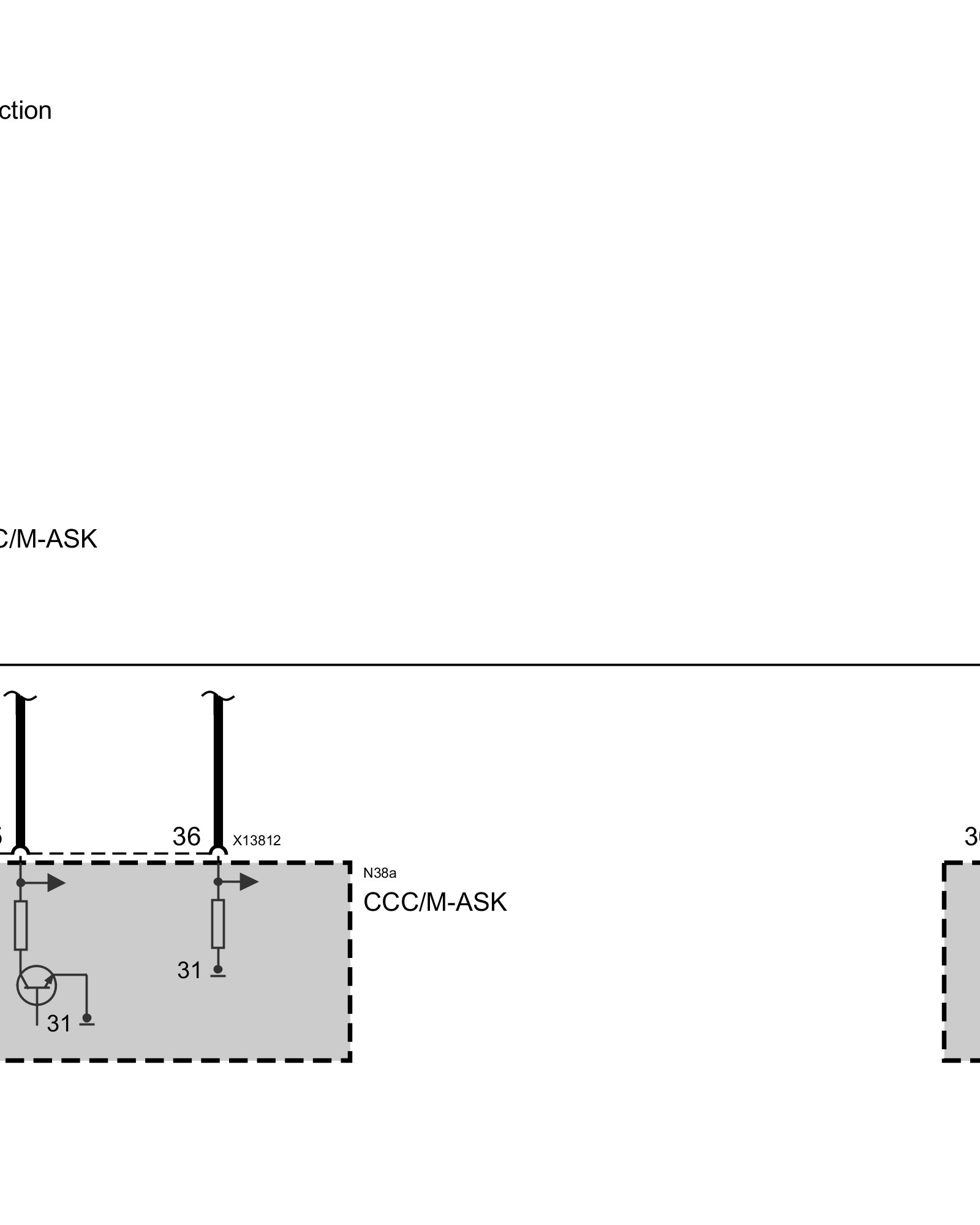

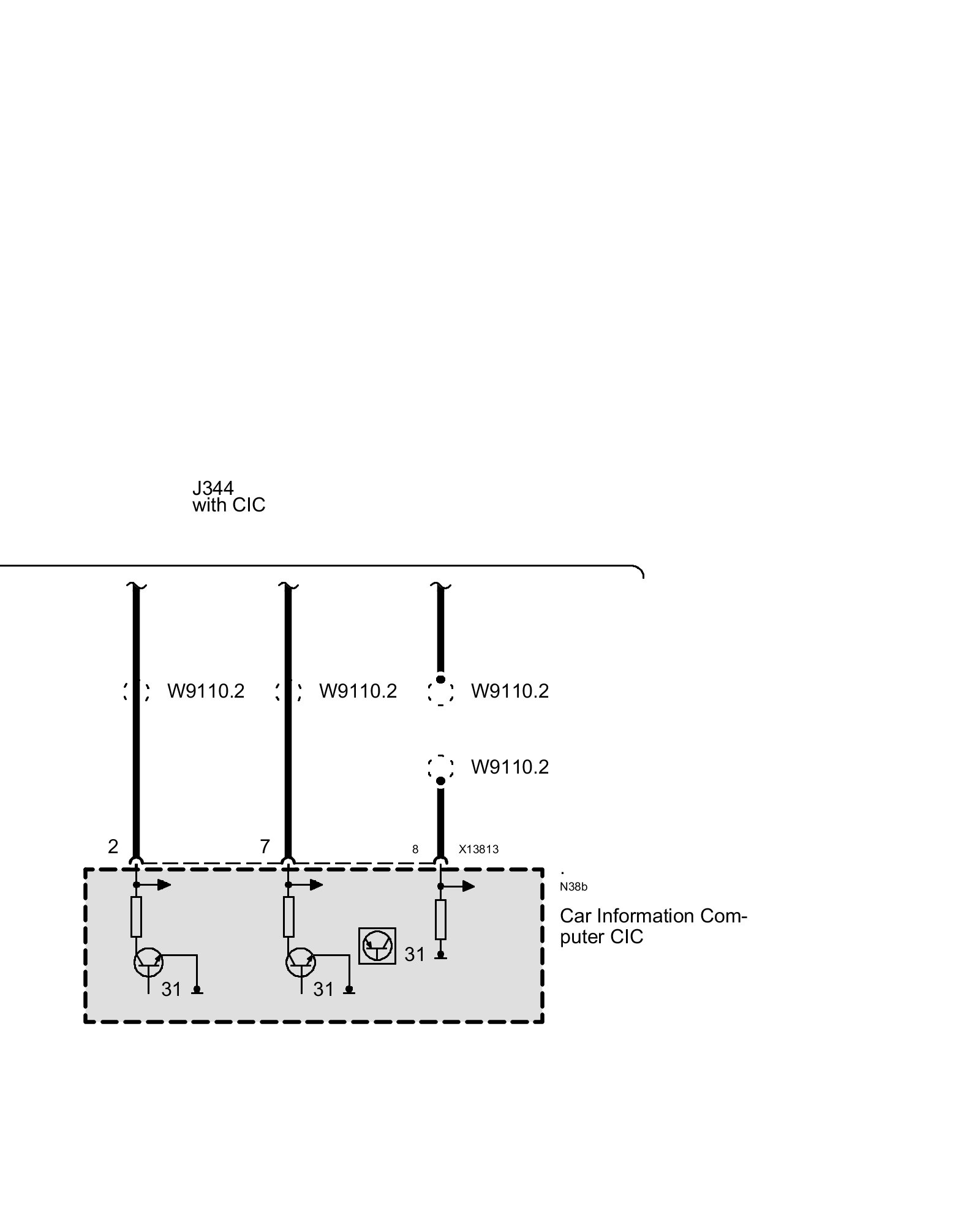

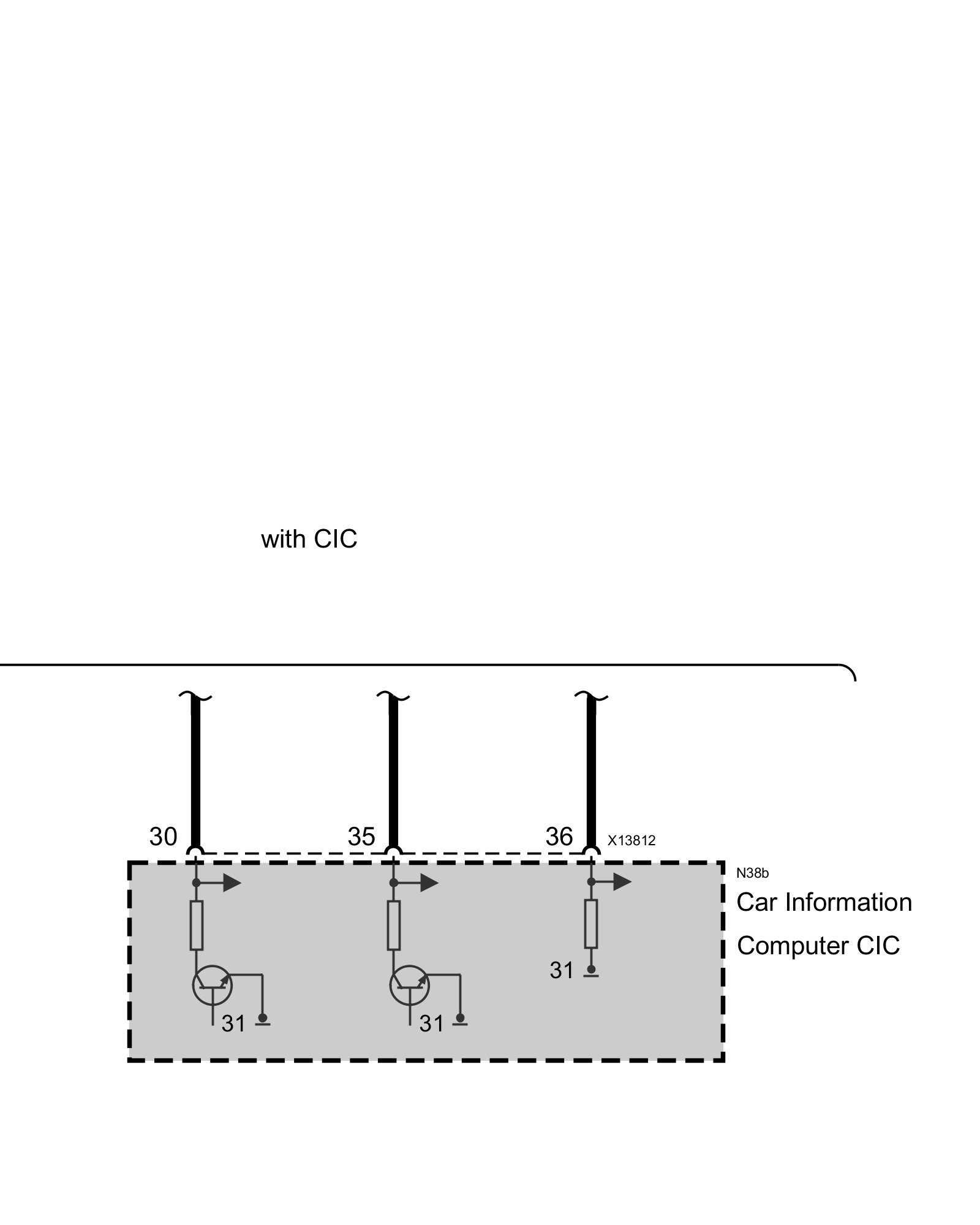

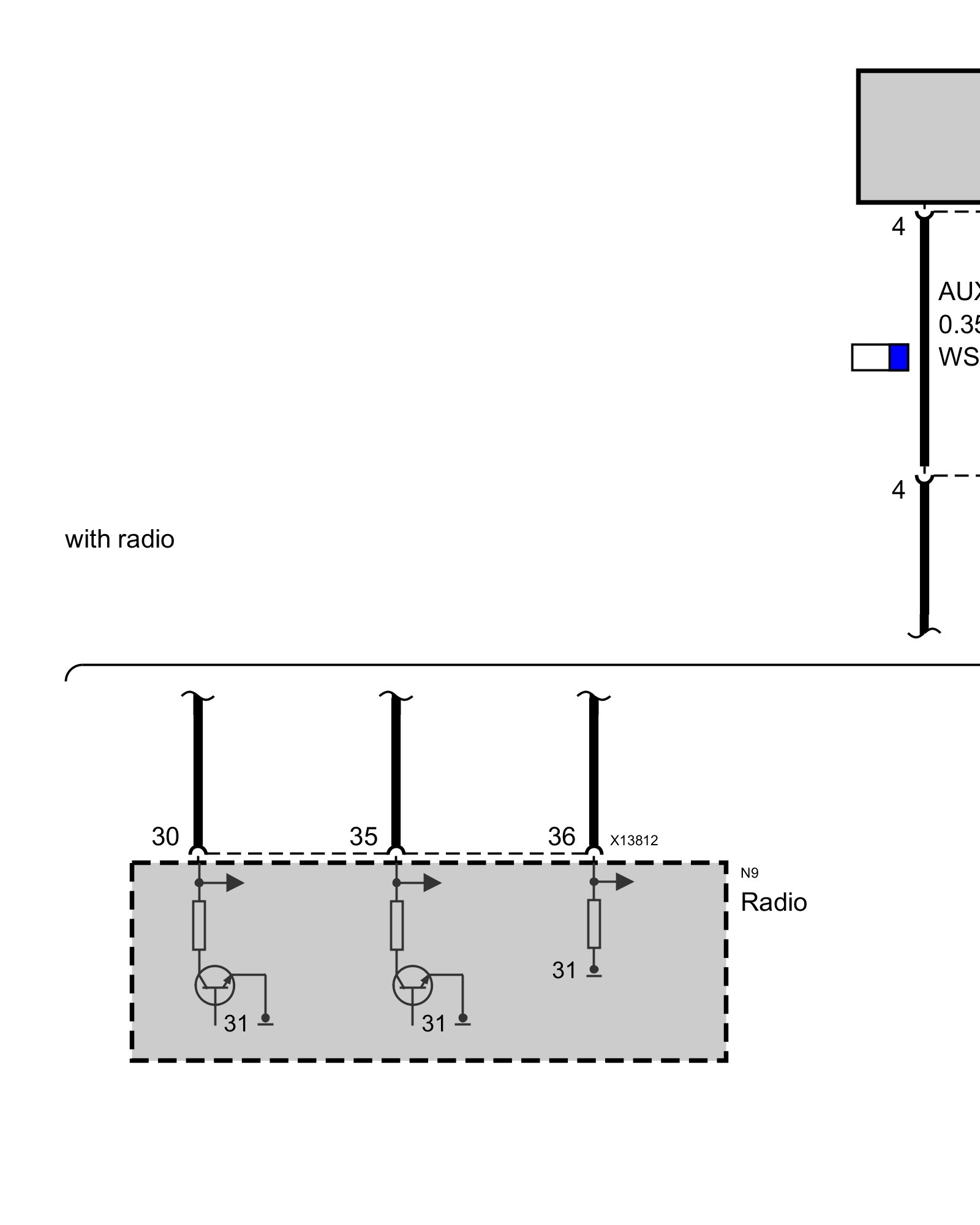

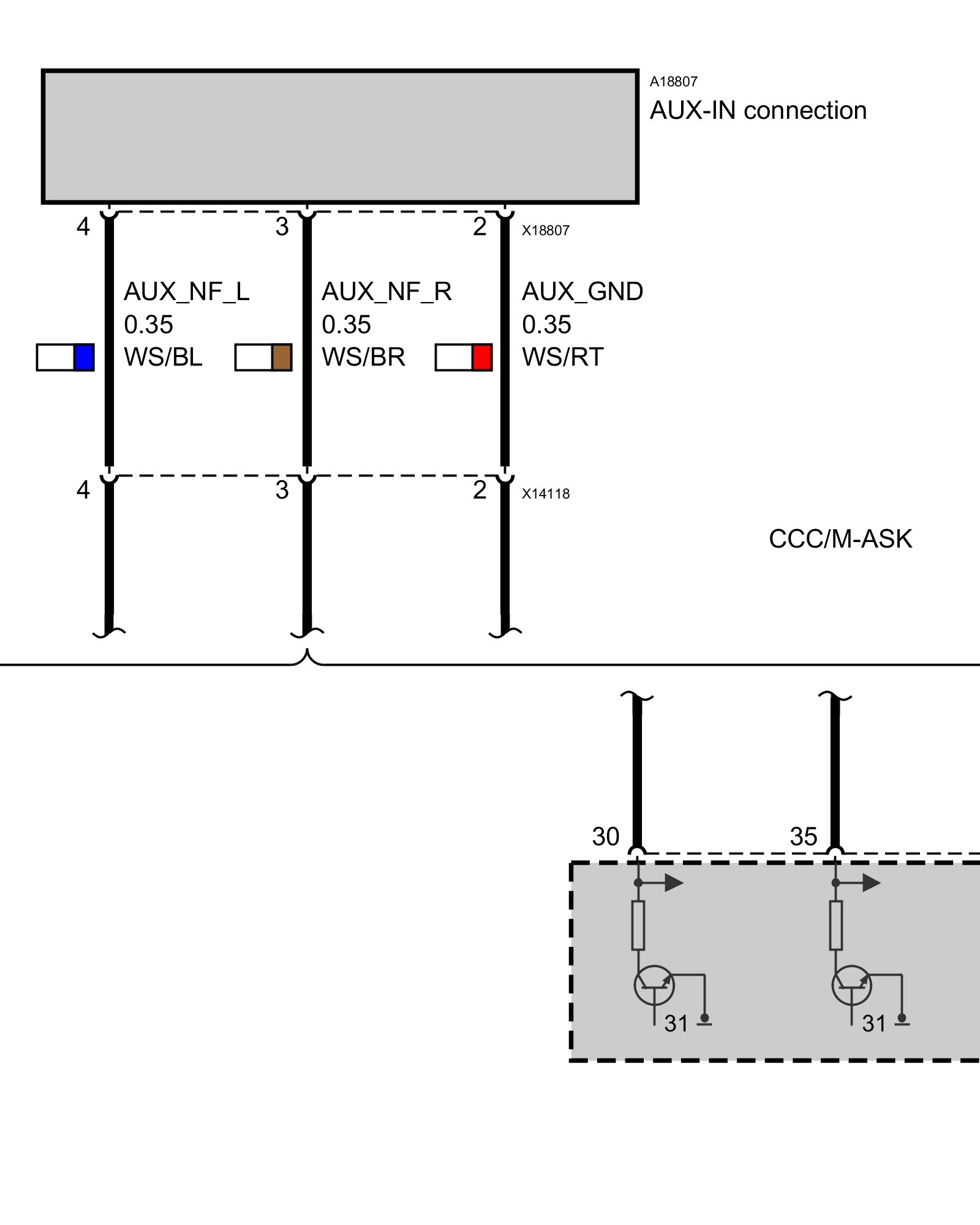

AUX-IN Connection
Up to 03/09
As of 03/09
