Radiator Cooling Fan: Service and Repair

17 11 035 Removing and installing/replacing fan cowl with electric fan (N52T)





Necessary preliminary work:
^ Read out fault memory of DME control unit.
^ Switch off ignition.
^ Remove cross connection.





Release coolant hose (1) from fan cowl.

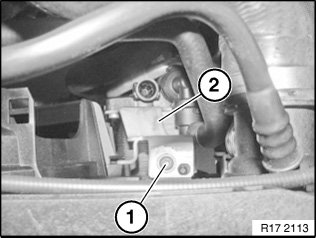

Release screw (1).

Tightening torque 17 10 3AZ.

Pull off transmission oil cooler (2) in upward direction from fan cowl.

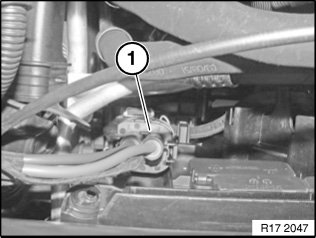

Unlock and disconnect connector (1) on fan cowl on right.

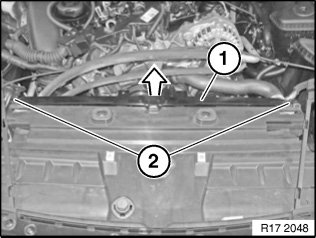

Unclip fan cowl (1) at retainers (2) on left and right, feed out in upward direction and remove.

Installation note:

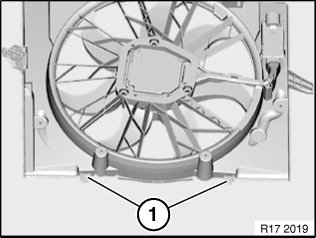

Insert retaining tab (1) at bottom on module carrier.








Note:
Check stored fault message.

Reassemble the vehicle.

Delete fault memory.
