Throttle Body: Service and Repair

13 54 030 Removing And Installing/Sealing Throttle Valve Assembly (N52T)







Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary work:
- Turn off ignition
- Remove intake silencer housing
- Remove air intake hose at throttle body







Unlock plug (1) and remove.
Release screws.
Tightening torque 13 54 1AZ.
Remove throttle body (2).







Installation:

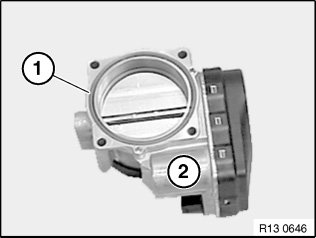

Replace sealing ring (1) of throttle body (2).







Installation:
Check stored fault messages.
Delete fault memory.
