Trunk Lamp: Service and Repair

63 31 080 Removing And Installing/Replacing Luggage Compartment Light







IMPORTANT: Follow instructions for handling light bulbs (interior lights) .







NOTE: Open luggage compartment lid.

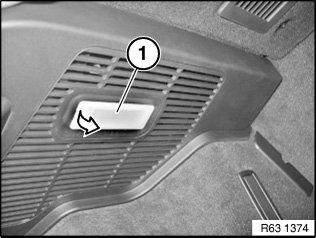

Lever out luggage compartment light (1) in direction of arrow.

Disconnect plug connection underneath and remove luggage compartment lamp (1).







Replacement:
- If necessary, remove bulb.
- Note bulb type
