Operation CHARM
: Car repair manuals for everyone.
Home
>>
BMW
>>
2011
>>
535i GT (F07) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Electrical Diagrams
Electrical Diagrams

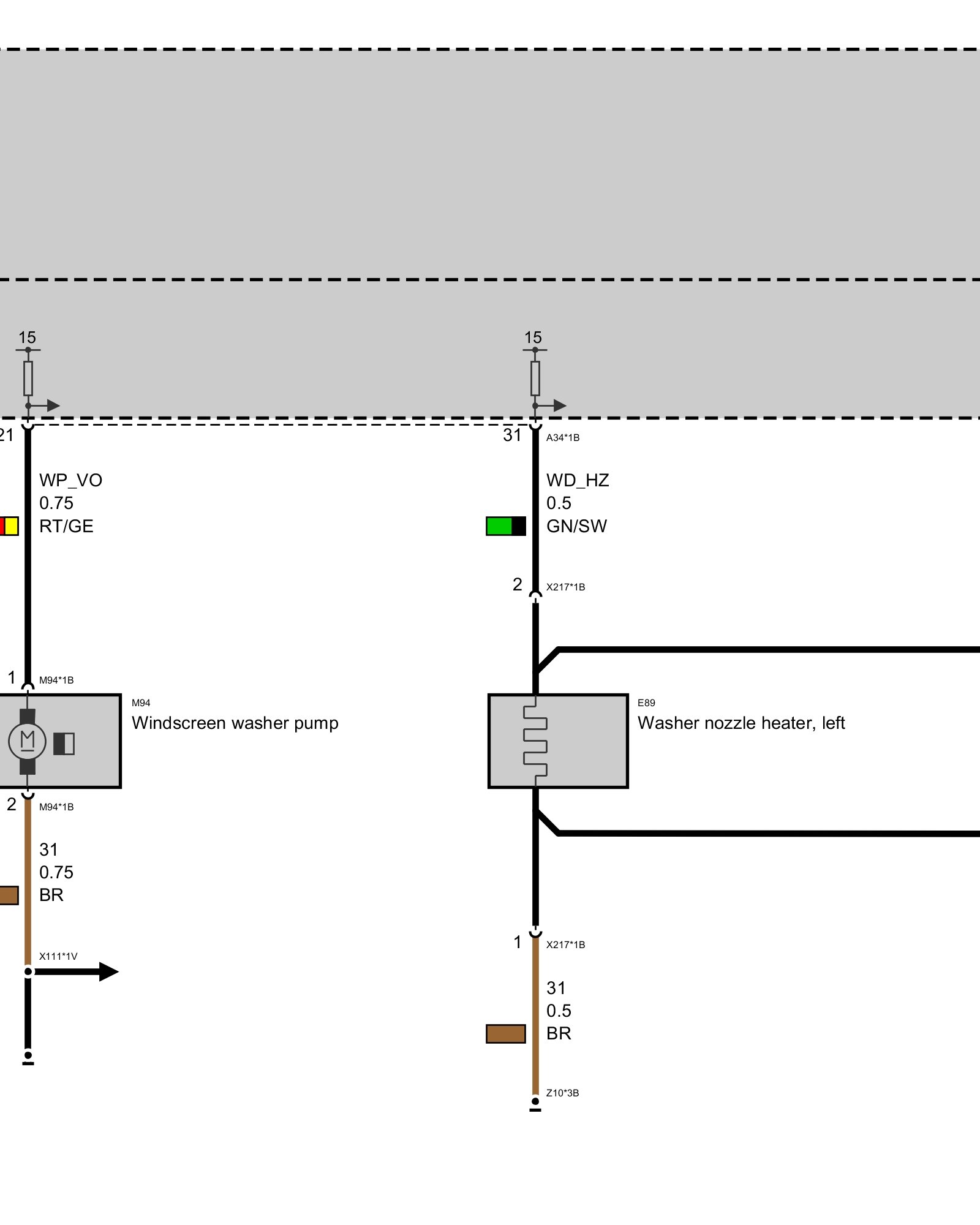

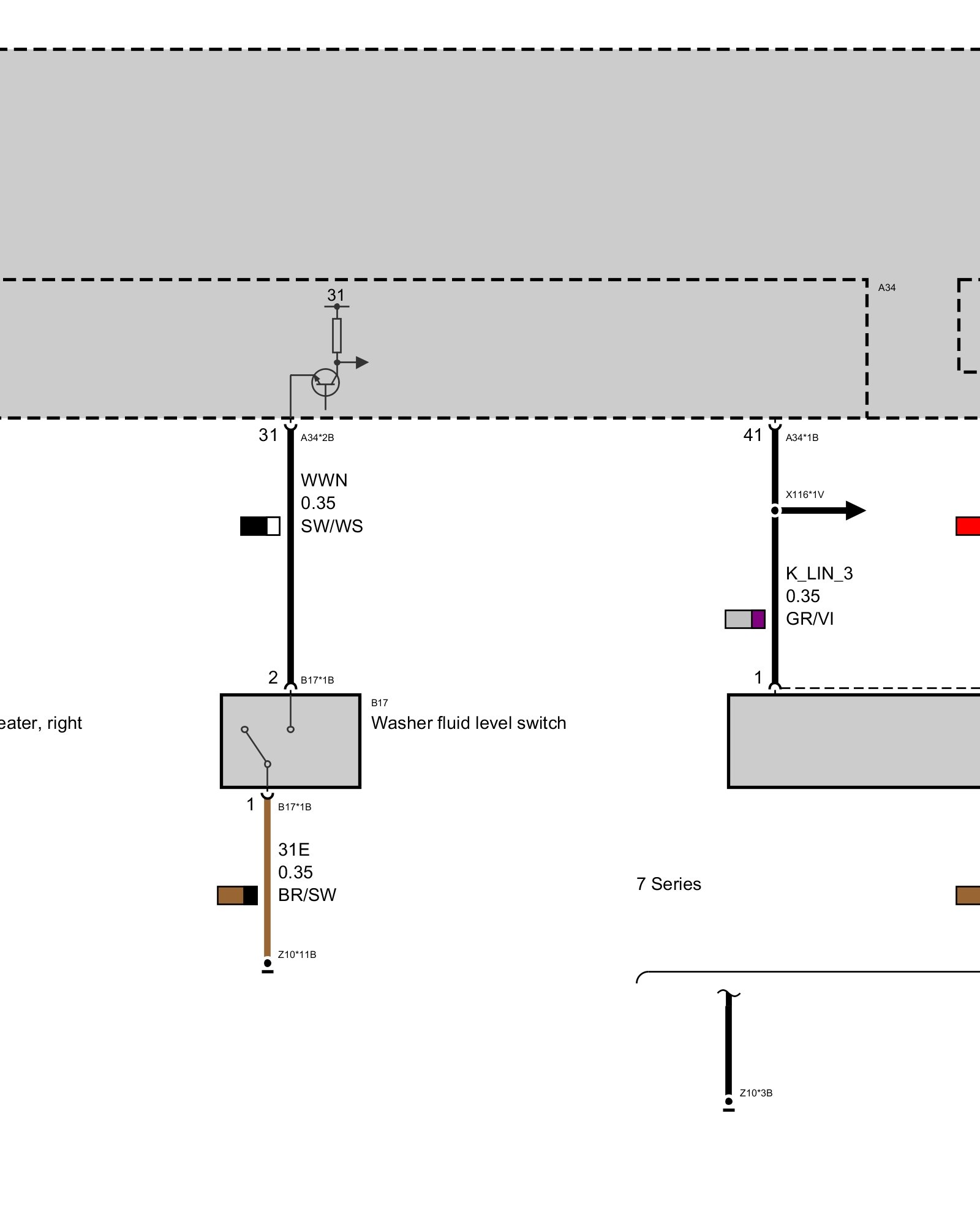

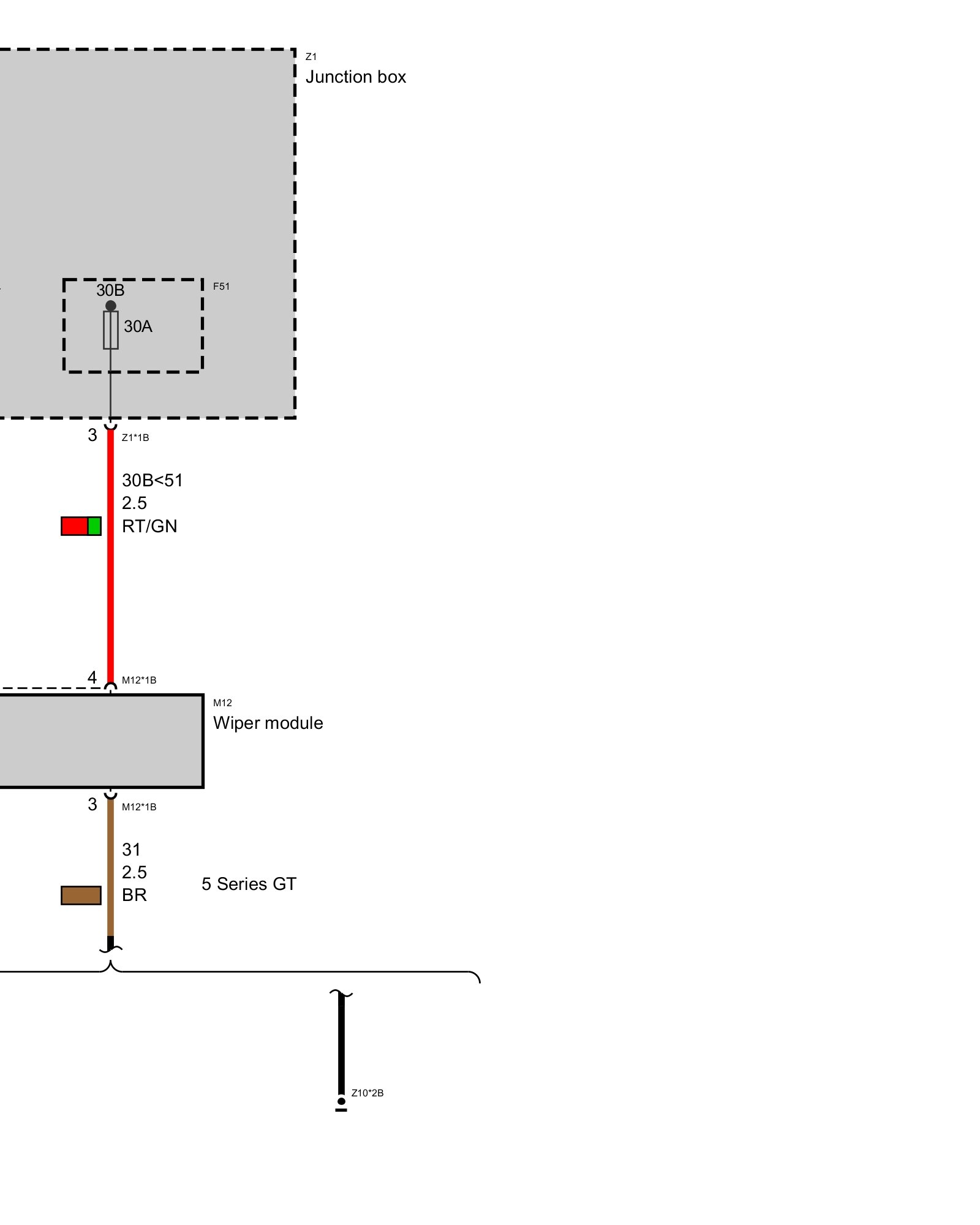

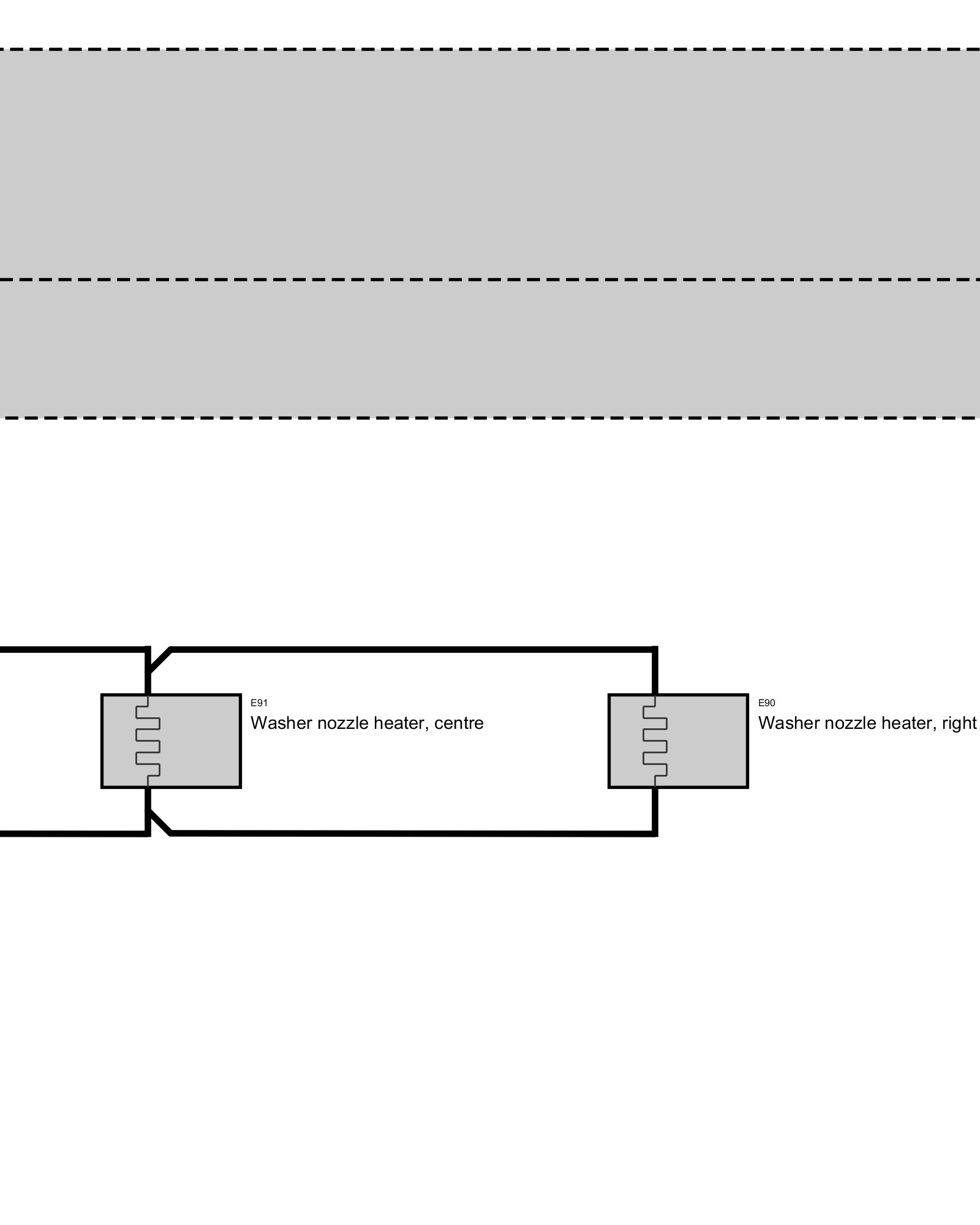

Wash/Wipe System
