63 21 183 Removing and Installing/Replacing Left or Right Tail Light (on Rear Lid)

63 21 183 Removing And Installing/replacing Left Or Right Tail Light (on Rear Lid)







Necessary preliminary tasks:
- Remove panel for rear lid

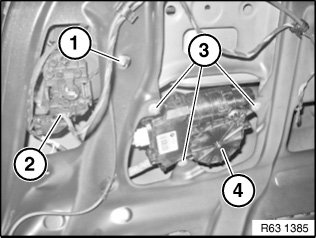

Slacken nut (1).
Disconnect plug connection (2).

Installation:
For special version Softclose:

Release screws (3) and slide drive for Softclose (4) slightly towards rear.

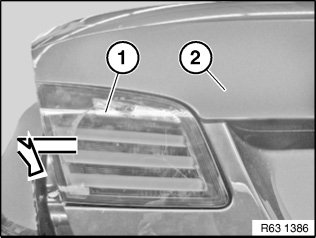

Carefully lift rear light (1) toward the rear and remove from rear lid (2) in direction of arrow.







Installation:

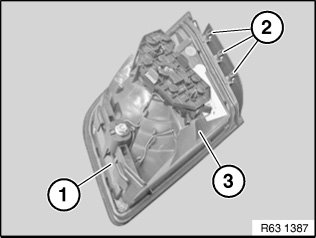

Make sure bracket (1) is correctly seated.
Guides (2) of rear light (3) must not be damaged.







Replacement:
If necessary, remove bulbs.
