Blower Motor Resistor: Service and Repair

64 11 225 Replacing Controller For Heating And A/C System Fan







Necessary preliminary tasks:
- Remove fan housing for heater/air conditioner

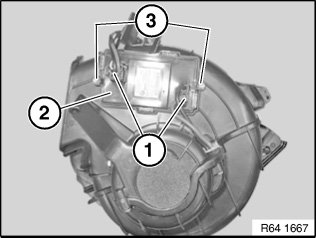

Unlock plug connections (1) and disconnect.
Release screws (3).
Remove controller (2) towards top.
