Flywheel: Service and Repair

11 22 500 Removing and installing/replacing flywheel (N54, N54T)

Special tools required:





Necessary preliminary tasks:
^ Remove transmission
^ Remove clutch

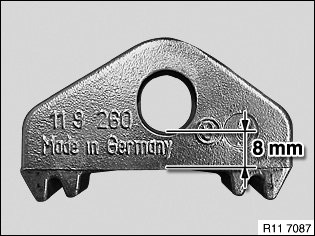

Enlarge special tool 11 9 260 with an elongated hole.





Enlarge elongated hole on special tool 11 9 260 to 8 mm.





For vehicles with manual gearboxes:
Secure flywheel with special tool 11 9 260.

Release flywheel bolts with special tool 11 4 180 /

Tightening torque 11 22 2AZ.

Installation note:
The flywheel is secured with a dowel pin.

Fit new flywheel screws.





For vehicles with automatic transmissions:
Secure flywheel with special tool 11 9 260.

Release flywheel screws with a suitable tool (1).

Tightening torque 11 22 1AZ.

Installation note:
The flywheel is secured with a dowel pin.

Fit new flywheel screws.

Assemble engine.
