Windshield Washer Pump: Service and Repair

61 71 100 Removing And Installing/replacing Windscreen Washer Pump







Necessary preliminary tasks:
- Remove front wheel arch cover rear section
- Remove right auxiliary direction indicator
- Drain fluid tank for windscreen washer system.

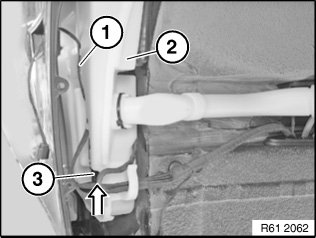

Feed cable for auxiliary direction indicator (1) out of fluid reservoir (2).
Press windscreen washer pump (3) upwards in direction of arrow and lay to left side.







Disconnect plug connection (1).
Detach washer fluid line (2) from windscreen washer pump (3).
Remove windscreen washer pump (3).







Installation:
Replace strainer for windscreen washer pump.
If necessary, coat sealing ring of windscreen washer pumps with lubricant.
Ensure hose is laid without kinks.
Make sure electrical leads are correctly laid.
