Windshield Washer Spray Nozzle: Adjustments

61 71 004 Adjusting Washer Jets For Windscreen Washer System

Triple nozzle system







The spray jets should hit the middle of the wiping area.

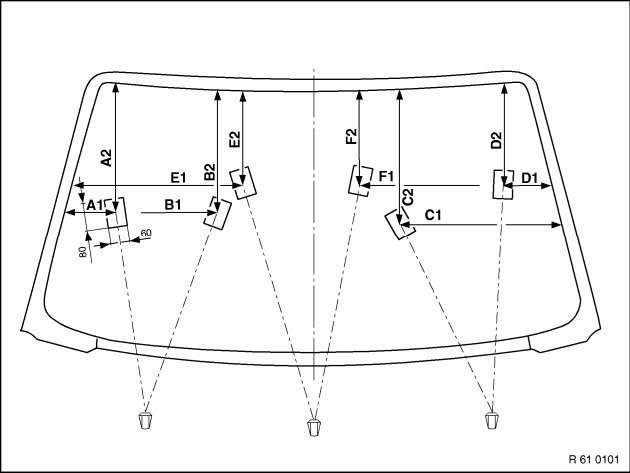

Adjustment values in mm
A1= 200 D1= 230
A2= 400 D2= 350
B1= 400 E1= 500
B2= 400 E2= 350
C1= 450 F1= 550
C2= 450 F2= 350







If necessary, adjust left/right or middle washer jet (1) by way of screw (2).

NOTE: If necessary, remove adhesive residue from windscreen. Fill up with washer fluid.
