Windshield Washer Motor: Adjustments




61 71 004 - Adjusting windscreen washer spray nozzles

Triple nozzle system





The sprayed jets of water should hit the middle of the wiping area.
Adjustment values in mm

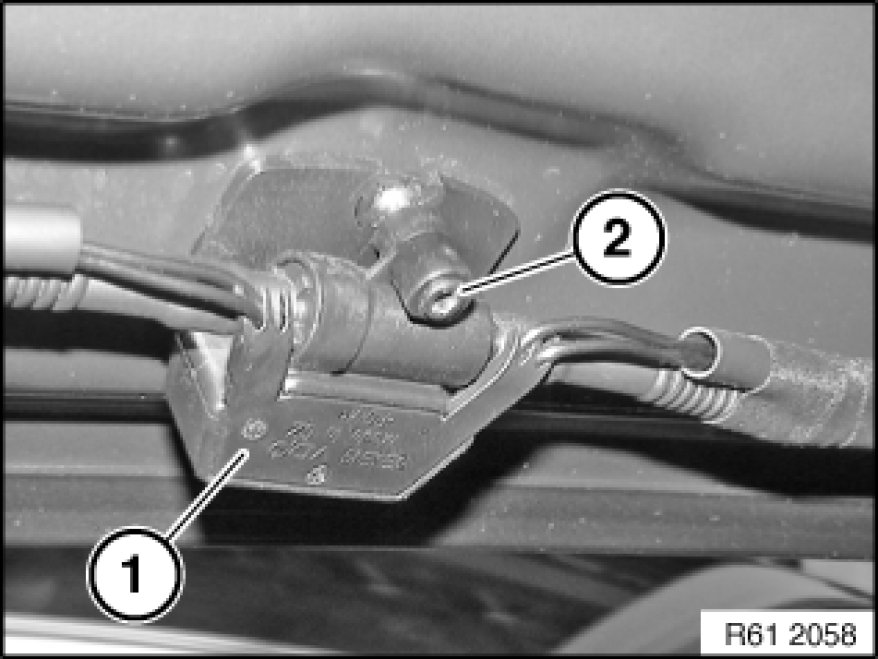

If necessary, adjust left/right or middle spray nozzle (1) by way of screw (2).

Note:
If necessary, remove adhesive residue from windscreen.
Fill up with washer fluid.
