Sound Proofing / Insulation: Service and Repair

51 71 ... Removing And Installing/Replacing Sound Insulation For Bulkhead Upper Section







Necessary preliminary work:
- Remove cowl panel cover panel.
- Remove engine compartment lid gasket







Remove rubber seal (1).
Release screws (3).

Installation note:
Replace screws (3).
Unfasten screws (2).

NOTE:
Screws (2) are partly behind side sound insulation.
Remove side sound insulation.
Release screws (4).

NOTE: Screws (4) are behind central sound insulation.

Installation note:
Replace screws (4).
Remove middle sound insulation.

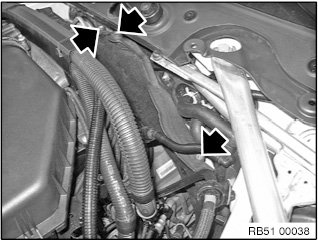

NOTE: Arrows mark bolting points of middle sound insulation.
