Headlamp Washer Pump: Service and Repair

61 67 010 Removing and Installing/Renewing Washer Pump of Headlight Washer System







Necessary preliminary tasks:
- Remove fluid reservoir for windscreen washer system

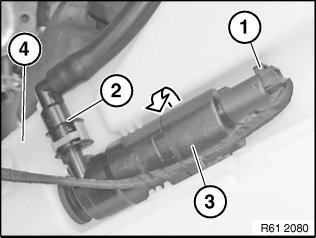

Disconnect plug connection (1).
Unlock hose (2) and detach from washer pump of headlight cleaning system (3).
Turn washer pump of headlight cleaning system (3) in direction of arrow and pull upwards out of fluid tank for windshield washer system (4).
