SUBJECT
Instrument Cluster Only Displays Background Image and Gear Indicator
MODEL
F01
F02
F04
F07
F10
F12
F13
Produced to July 2012
SITUATION
The display in the instrument cluster intermittently only shows the background image and the gear indicator.
^ No fault code is stored
^ All gauges function correctly
Note:
The issue is rectified after a sleep mode cycle (ignition off for approx. 16 minutes).
CAUSE
Software error in the instrument cluster introduced with software I-level 12-03-500 or higher (ISTA/P 2.46.1 or higher)
CORRECTION
Do not replace parts for this issue.
1. Perform a vehicle test using the latest ISTA (Integrated Service Technical Application) diagnostic software. Complete all test modules related to instrument cluster faults. If no faults are stored, continue to the next step.
Note:
When the ISTA system message displays: Battery voltage only "XX.XX" V. Please connect charger. Please note the displayed battery voltage reading in the repair order comments section. This documentation is not necessary when part of an approved Technical Service repair procedure; the battery charger is required to be attached before performing the Vehicle Test.
2. Reprogram the vehicle using ISTA/P 2.48.2 or later.
New integration level:
F01, F02, F04, F07 - F001-12-11-503 or higher
F10, F12, F13 - F010-12-11-503 or higher
Note that ISTA/P will automatically reprogram and code all programmable control modules that do not have the latest software.
For information on programming and coding with ISTA/P, refer to CenterNet / Aftersales Portal / Service / Workshop Technology / Vehicle Programming.

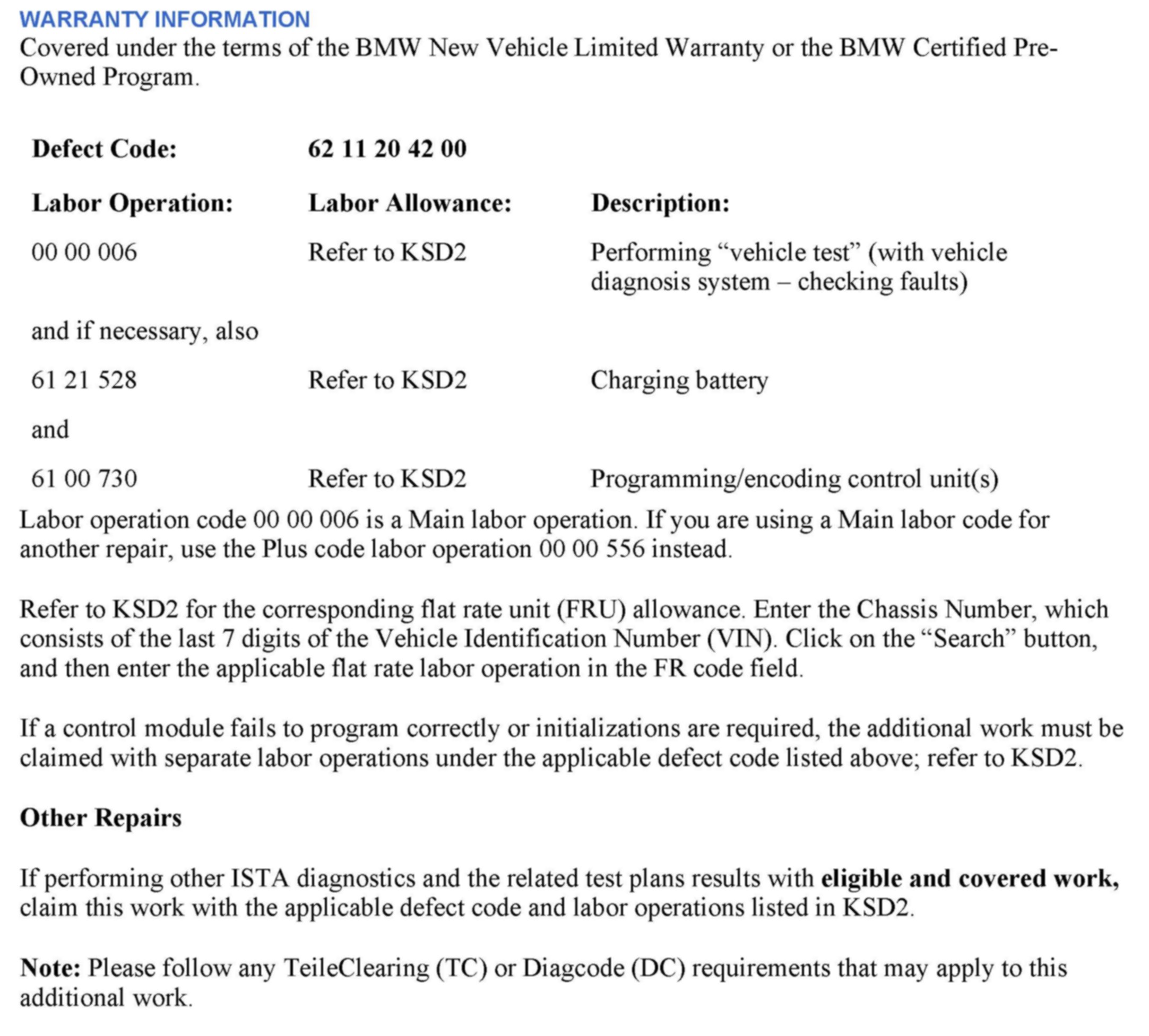

WARRANTY INFORMATION
