Flywheel: Service and Repair

11 22 510 Removing and installing/replacing flywheel (transmission removed - N74)

Special tools required:





Necessary preliminary tasks:
^ Remove transmission.

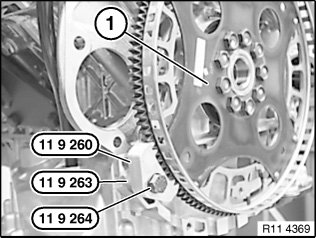

Secure flywheel (1) with special tool 11 9 260, 11 9 263 and 11 9 264.

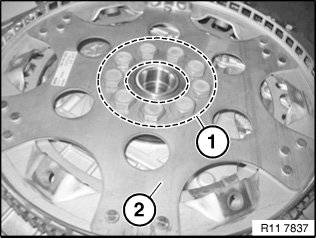

Release flywheel screws in area (1).

Remove flywheel (2).

Installation:
Clean threads on flywheel screws in crankshaft.

Flywheel (2) is secured with an alignment pin.

Fit flywheel (2).

Fit new flywheel screws.

Tightening torque 11 22 1AZ.
