65 24 020 Removing and Installing/Replacing Blocking Circuit

65 24 020 Removing And Installing/replacing Blocking Circuit







Necessary preliminary work:
- Lower headliner.

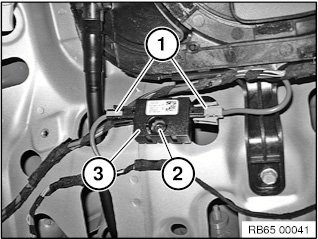

Unlock plug connections (1) and disconnect.
Release screw (2).
Remove blocking circuit (3).

Installation note:
Ensure rejector circuit (3) is fitted correctly.
