Control Assembly: Service and Repair

64 11 374 Removing And Installing (replacing) Control Panel For Heating And Air Conditioning System







Necessary preliminary work:
- Remove radio and A/C control panel







The following operation describes the replacement.







Disconnect plug connection (1).

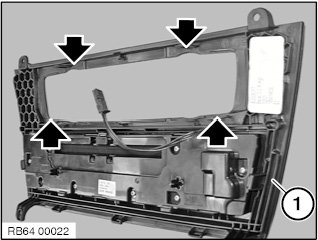

Release retainers (3) on air conditioning control panel (2) by pressing the retaining tabs (3) inward with a suitable tool.

At the same time press air conditioning control panel (2) forward out of retaining frame and remove.

Installation note:
The air conditioning control panel (2) must be felt and heard to engage in the retaining frame.







Retaining lugs on trim cover (1) must not be damaged.
