51 45 195 Removing and Installing/Replacing Instrument Panel Trim, Bottom Right

51 45 195 Removing and installing/replacing instrument panel trim, bottom right

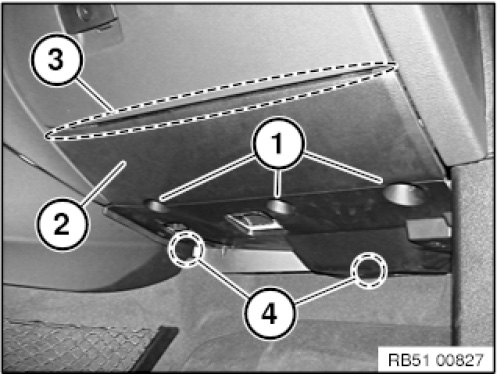

Release screws (1).
Firstly push trim panel (2) forward and then loosen from guides in area (3).
Lower front trim panel (2) a little and then pull off from guide in area (4) to the rear.
Disconnect plug connections behind and remove trim panel (2).







Installation note:
Latch mechanisms (1) and guides (2) must not be damaged.

Replacement
Modify footwell light.
