Center Mounted Brake Lamp: Service and Repair

63 25 003 Removing And Installing/renewing Auxiliary Brake Light







Necessary preliminary work:
- Remove aerial amplifier







Unfasten plug connection (1) and disconnect.
Unlock retaining lugs (2) on both sides with suitable tool and press upward.

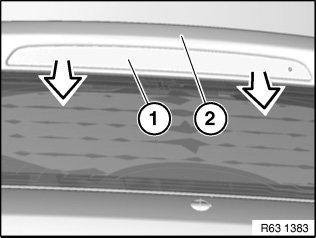

Pull auxiliary brake light (1) out of tailgate (2) in arrow direction.







Remove washer jet (1) from auxiliary brake light (2) in arrow direction.
