Windshield Washer Motor: Adjustments

61 71 004 - Adjusting windshield washer spray nozzles

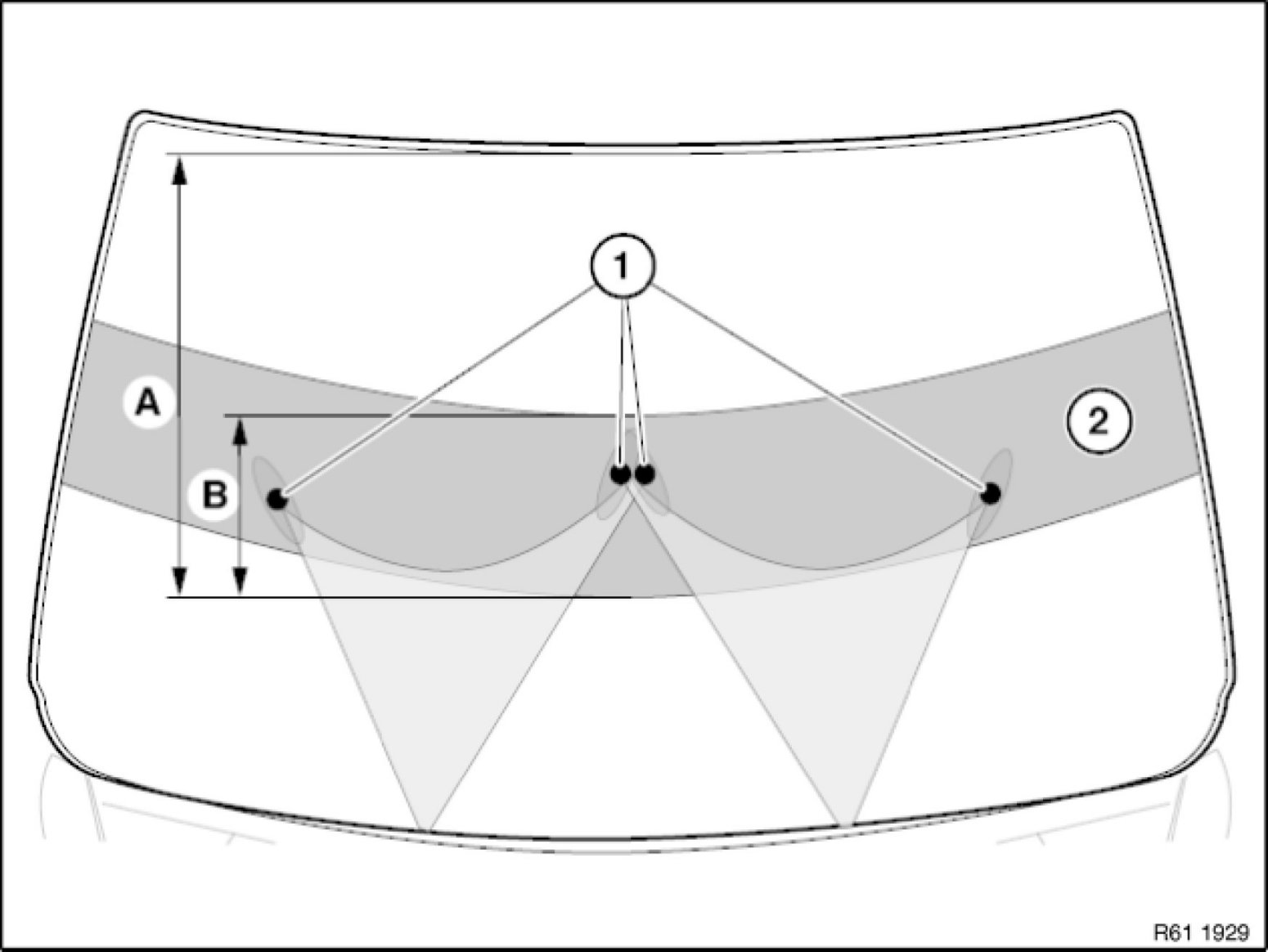

Mark tolerance range (2) with adhesive tape (A=500 mm / B=200 mm).
Actuate windshield washer system.
Contact points (1) must be in tolerance range (2).

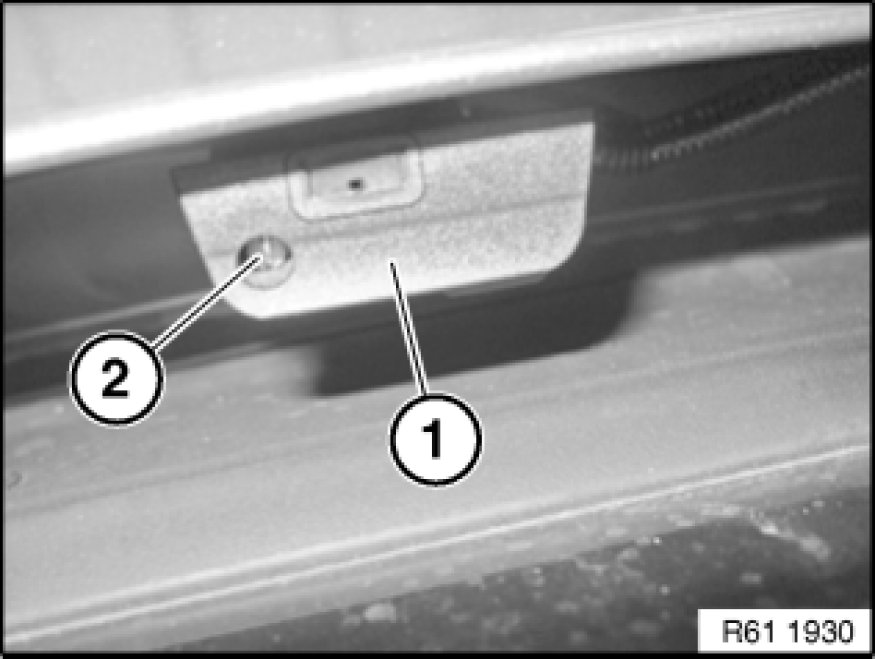

If necessary, adjust left or right spray nozzle (1) by way of screw (2).

Note:
If necessary, remove adhesive residue from windshield.

Fill up with washer fluid.
