Air Duct: Service and Repair

64 31 053 Removing And Installing Or Replacing Fresh-Air Duct







Necessary preliminary tasks:
- Remove microfilter housing







Unclip retaining pin (1).
Release retaining clips (2) and feed out fresh-air duct (3).

Installation:
Make sure fresh-air duct (3) is securely seated.

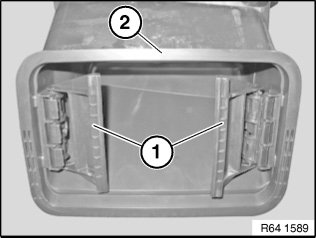

Make sure retaining clips (1) are correctly seated on fresh-air duct (2).







On renewal (E70 Security):
- Refer to Removing and installing/renewing engine compartment protective features (Security)
