Wiper Motor: Service and Repair

61 61 270 Removing And Installing Or Replacing Bracket For Windscreen Wiper System Complete With Motor







Necessary preliminary tasks:
- Remove cowl panel cover

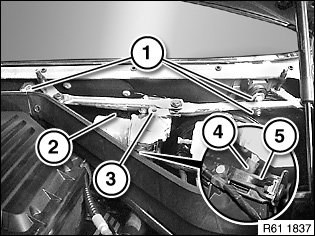

Release screws (1). Tightening torque 61 61 6AZ.
Disconnect plug connection (2).
Feed out bracket for windscreen wiper system (3) in upward direction.

Installation:
Rubber guide (4) must be correctly seated in guide (5).







Installation:
Before installing wiper arms, allow wiper motor to return to its rest position.
To ensure the wiper system works properly, check and correct the contact angle of the wiper arms.
