12 36 ... Removing and Installing/Replacing Lid on Power Electronics Box

12 36 ... Removing And Installing/Replacing Lid On Power Electronics Box







WARNING: High-voltage system - danger to life.







WARNING:
The following points must be strictly observed prior to starting work:
- De-energize the high-voltage system
- Observe safety instructions for handling with hybrid vehicles







Necessary preliminary tasks:
- Remove power electronics box lid.







Release screws (1).
Tightening torque 12 36 5AZ.
Remove cover (2).







Installation:

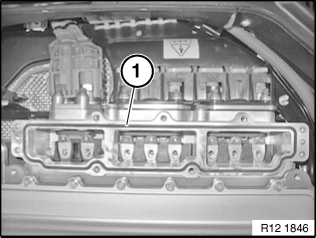

Replace seal (1) for lid on power electronics box. Clean guide for seal on power electronics box before installing new seal.
