Headlamp Washer Pump: Service and Repair

61 67 010 - Removing and installing/replacing washer pump of headlight washer system





Note:
Catch any escaping washer fluid if necessary.

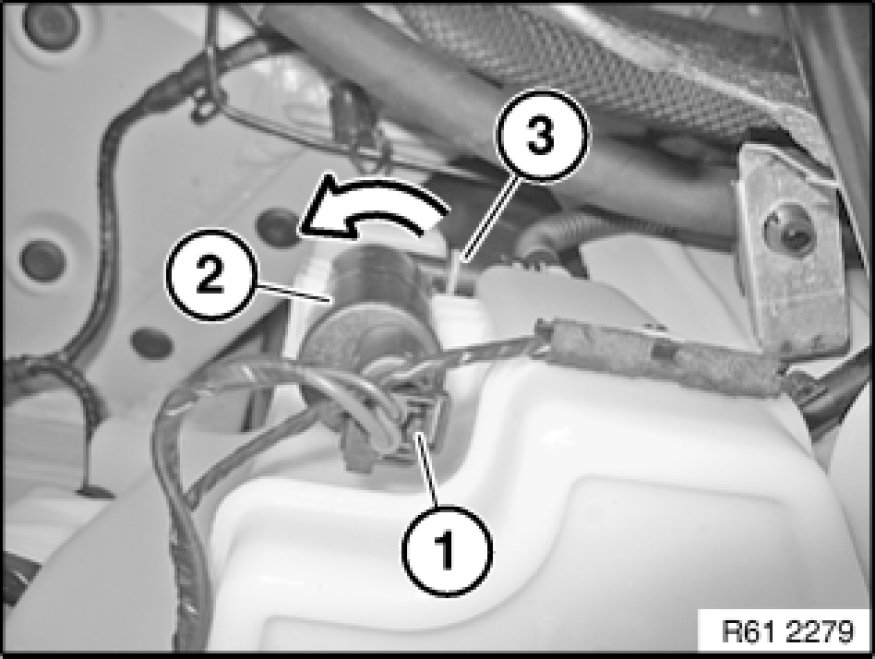

Unfasten plug connection (1) and disconnect.
Turn washer pump of headlight washer system (2) in direction of arrow.
Unlock hose (3) and detach from washer pump of headlight washer system (2).
Detach washer pump of headlight washer system (2) from fluid reservoir in upward direction.





Installation:
- Replace strainer for washer pump of headlight washer system.

- Coat sealing ring of washer pump for headlight washer system with antiseize agent.

- Lay hose of washer pump for headlight washer system without kinks

- Fill fluid reservoir
