65 20 150 Removing and Installing/Replacing Back-Up Aerial/Antenna

65 20 150 - Removing and installing/replacing back-up aerial





Necessary preliminary tasks:
- Remove complete centre console 51 16 165 Removing and Installing Complete Centre Console.

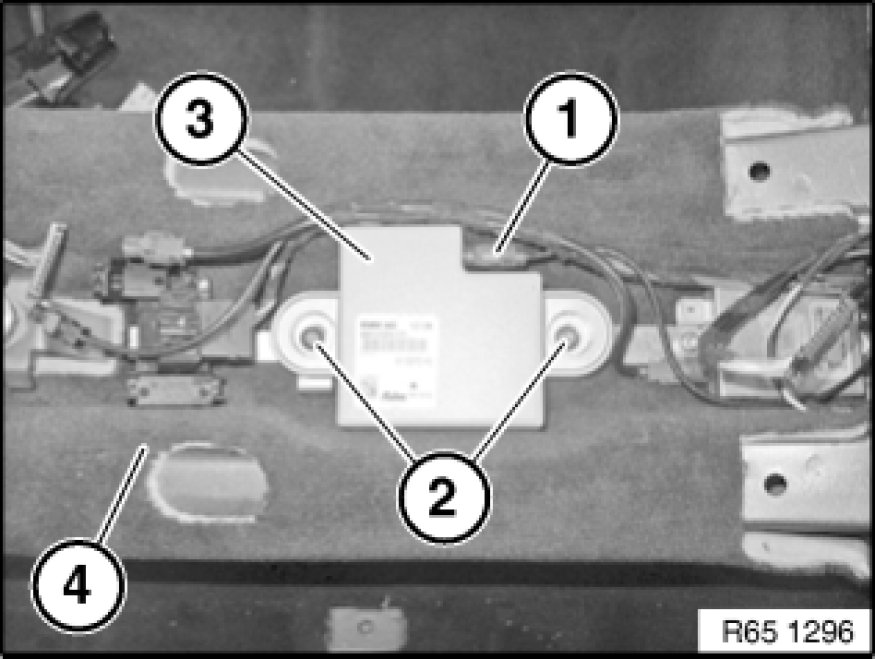

Unfasten plug connection (1) and disconnect.
Unfasten screws (2).
Remove back-up aerial (3) towards top from tunnel (4).
