84 10 050 Removing and Installing/Replacing USB Hub




84 10 050 - Removing and installing (replacing) USB hub





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove complete centre console 51 16 165 Removing and Installing Complete Centre Console

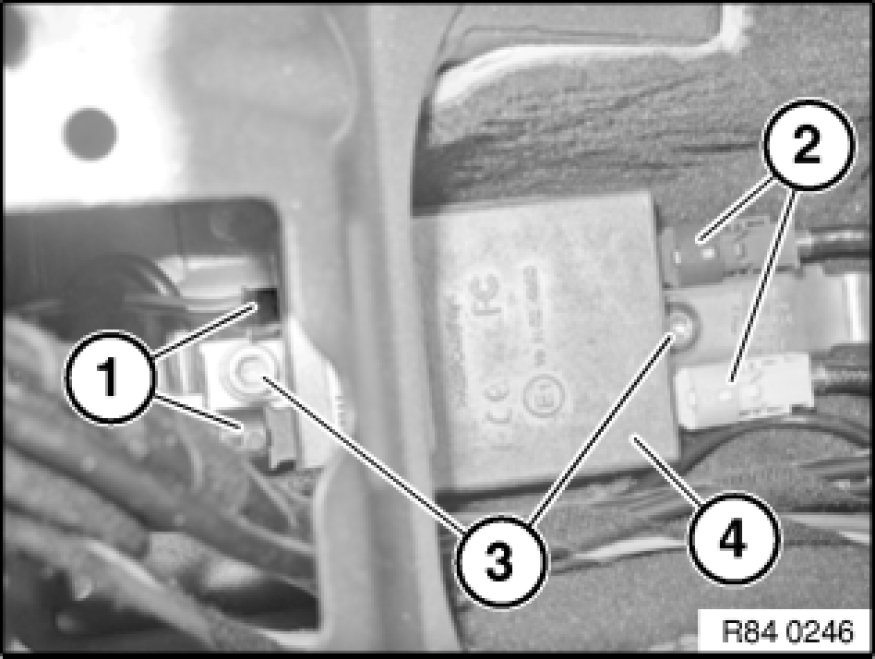

Unlock plug connections (1) and disconnect.
Unlock plug connections (2) and disconnect.
Release screws (3) and remove USB hub (4).





Replacement:
Carry out vehicle programming/coding Programming and Relearning.
