34 21 169 Removing and Installing/Renewing a Brake Anchor Plate/Brake Guard Plate at Rear

34 21 169 - Removing and installing/replacing a brake anchor plate/brake guard plate at rear





Necessary preliminary tasks:
- Remove drive flange on rear axle shaft

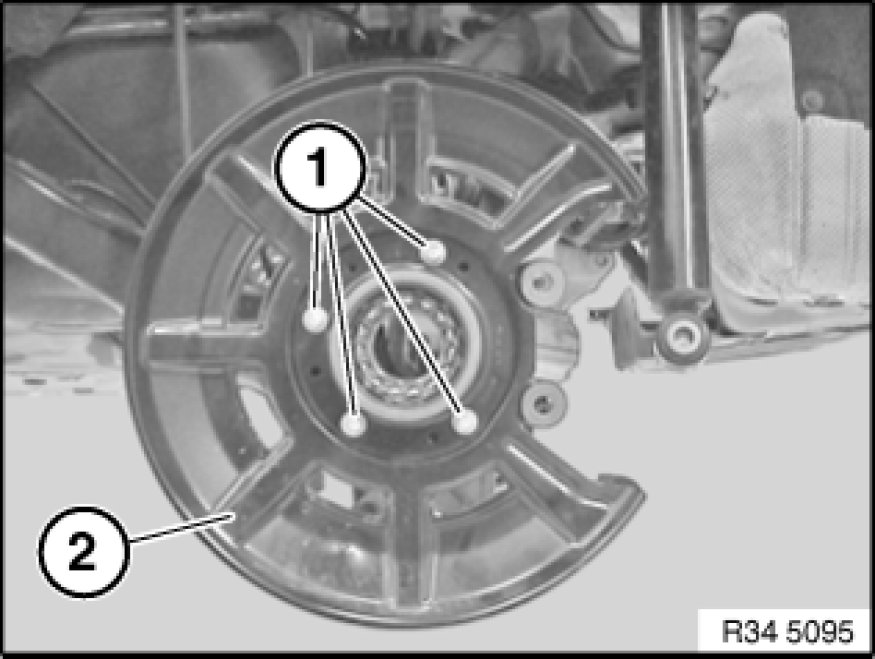

Release screws (1).

Installation:
Replace bolts.
Tightening torque 34 21 3AZ 34 21 Rear Brake.

Remove retaining plate (2).
