Blower Motor Resistor: Service and Repair

64 11 225 Replacing Controller For Heating And A/C System Fan







Necessary preliminary tasks:
- Remove heater/air conditioner fan

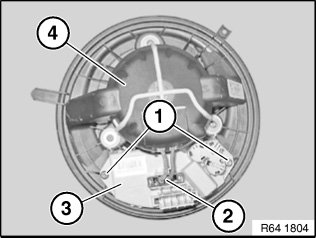

Release screws (1).
Tightening torque 64 11 3AZ.
Unfasten plug connection (2) and disconnect.
Remove controller (3) from fan motor housing (4).
