Blower Motor: Service and Repair

64 11 213 Removing And Installing/replacing Heater/air Conditioner Fan







Necessary preliminary tasks:
- Remove right glovebox with housing

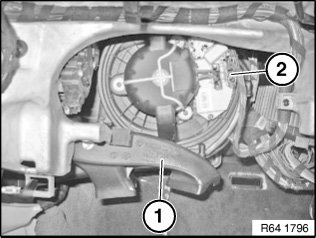

Remove air duct (1).
Unfasten plug connection (2) and disconnect.







Raise lug (1).
Release fan motor (2) in direction of arrow.

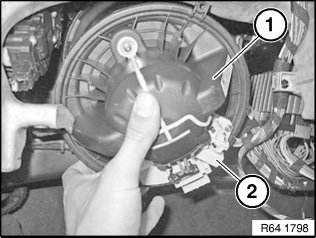

Pull fan motor (1) forwards a little and then turn until controller (2) points downwards.
Feed out fan motor (2).
