65 24 020 Removing and Installing/Replacing Blocking Circuit

65 24 020 Removing and installing/replacing wave trap







Necessary preliminary tasks:
- Remove trim panel for roof pillar, rear right

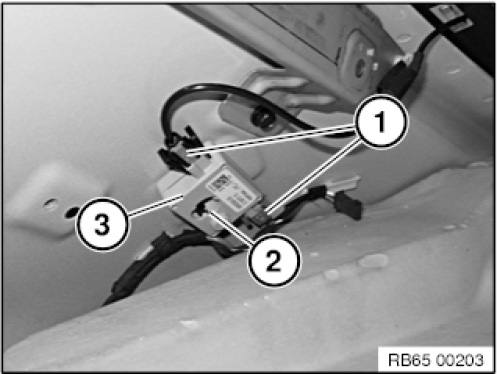

Unlock plug connections (1) and disconnect.
Release screw (2).
Remove blocking circuit (3).







Installation note:

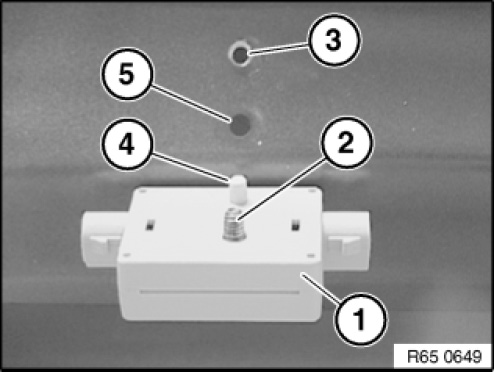

Fit wave trap (1) so that screw (2) engages thread (3) and locating pin (4) engages bore (5).
