63 11 840 Replacing Left LED Fan (Middle)

63 11 840 Replacing left LED fan (middle)







Necessary preliminary tasks:
- Remove wheel arch cover







Turn protective cap (1) counterclockwise and remove.

IMPORTANT: Risk of damage due to moisture penetration.

Installation note:
Check seal. Replace protective cap (1) if necessary.
Comply with Instructions for replacing the protective cap.
Protective cap (1) must lock correctly.
Turn the protective cap (1) clockwise to end stop (A).

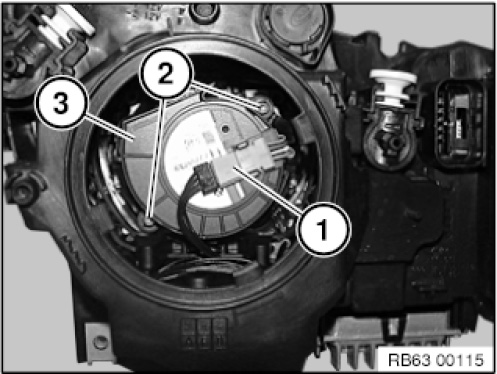

Unfasten plug connection (1) and disconnect.
Unfasten screws (2).
Remove LED fan (3).
