63 11 845 Replacing Left LED Fan Left (Outer)

63 11 845 Replacing left LED fan left (outer)







Necessary preliminary tasks:
- Remove headlight with LED technology
- Remove headlight driver module







Release latch mechanism (1) and screws underneath.
Remove cover (2).







Installation note:
Gasket (1) must not be damaged and must be installed free from grease.

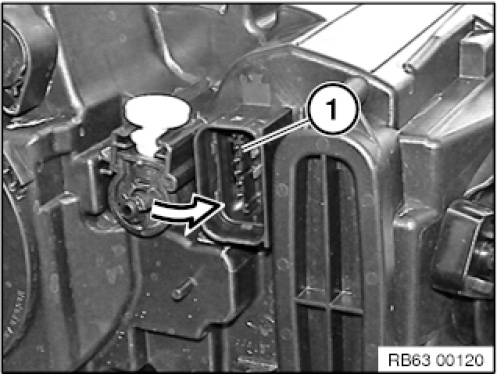

Disengage connector (1) from light housing in direction of arrow.







Release screws (1) on LED fan through opening (2,3).







Disconnect plug connection (1).
Remove fan (2) to the side.
