650i Coupe (F13) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>

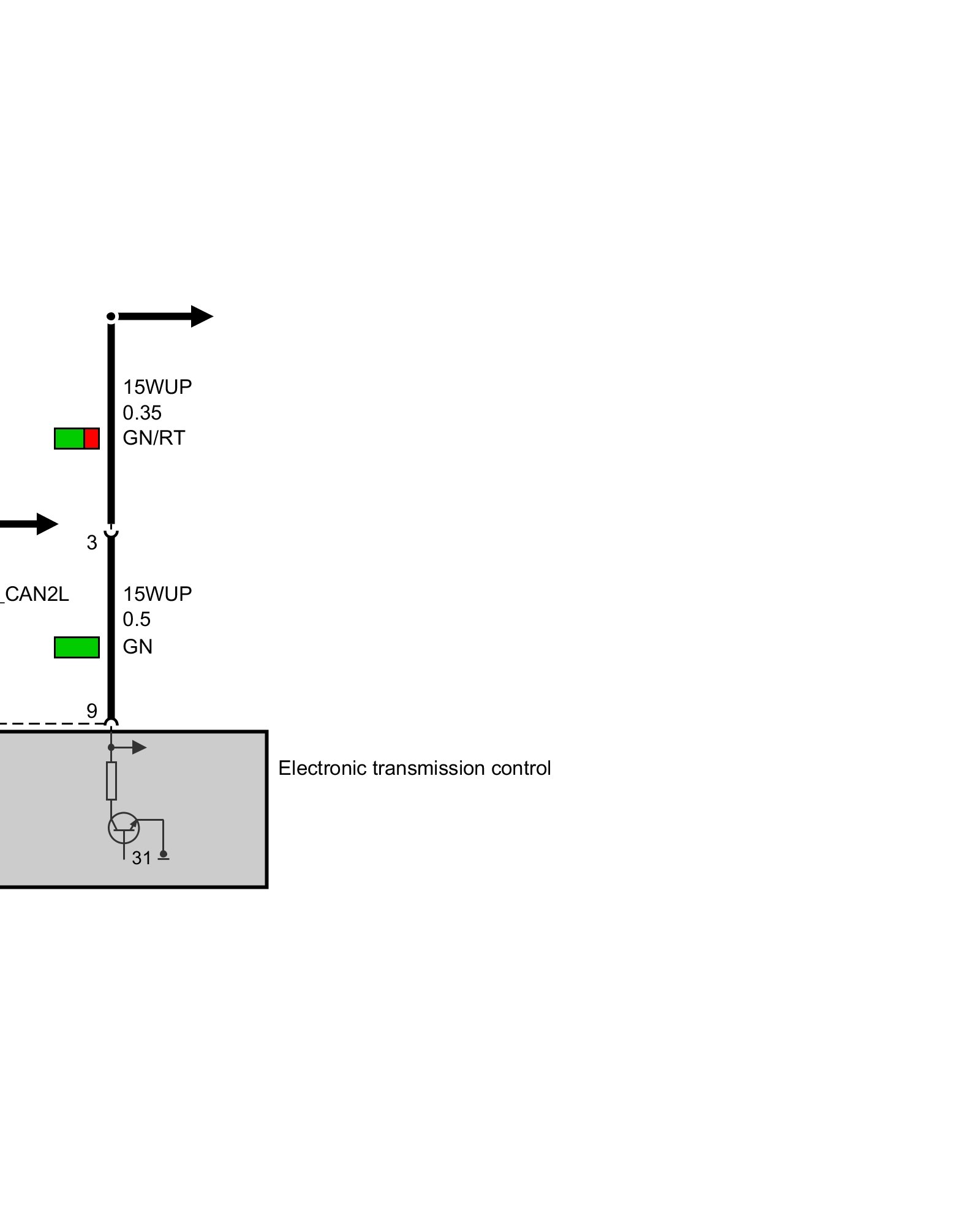

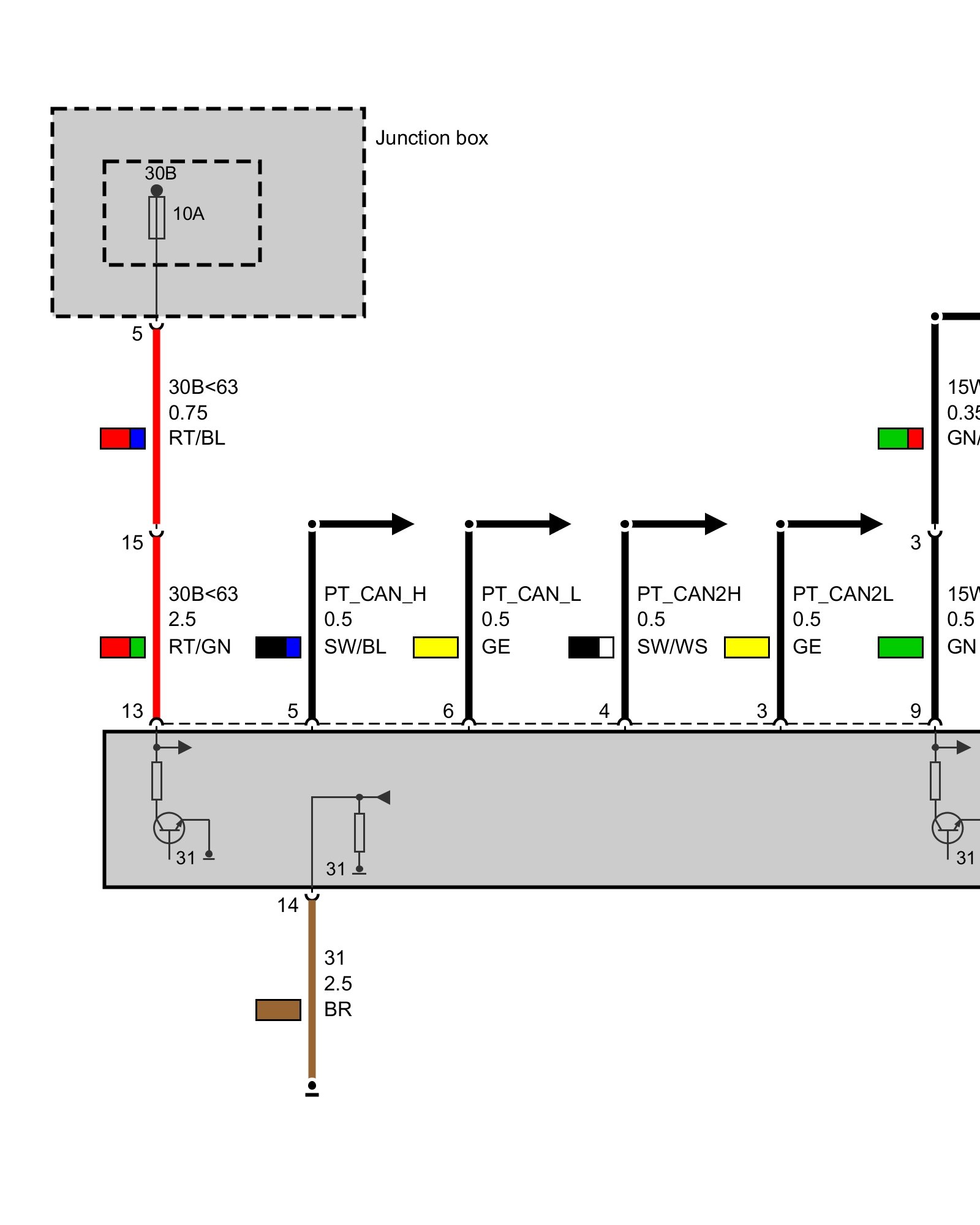

Transmission Control
Transmission Control
Transmission Control
Auto Up to 06/12
Manual Up to 05/12
Auto As of 06/12
