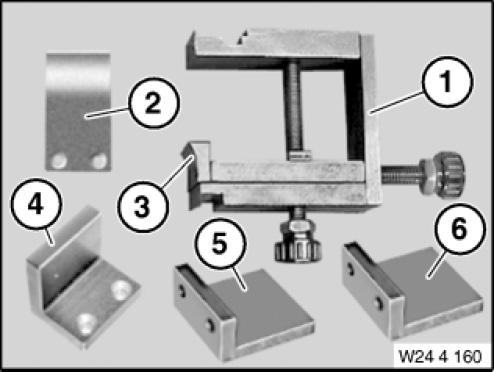

24 4 160 Support Bracket

24 4 160 Holder

0494451

Minimum set: Mechanical tools
MW







NOTE: For securing converter during removal and installation of transmission

Storage Location: A47
C46

SI number: 01 11 02 (908)

Consisting of:

1 = 0494478 Basic body

2 = 0494479 Shaped element

NOTE: For converter variantN73

3 = 0494477 Shaped element

NOTE: For converter variantM57TU

4 = 0494622 Shaped element

NOTE: For converter variantM54

5 = 0494965 Shaped element

NOTE: Transmission: GA6 HP19 in E87, E90

6 = 0496061 Shaped element

NOTE: Transmission: GA6L45R (GM6) in E83 / N52K
