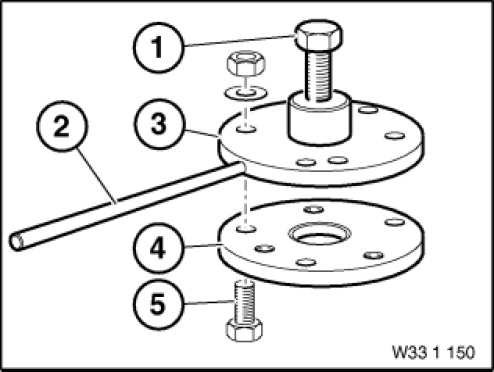

33 1 150 Fixture

33 1 150 Device

0492083

MW







NOTE: For pulling off drive flanges (also E46/16).

Storage Location: C18
C17

Consisting of:

1 = 0493265 Spindle

2 = 0493266 Mandrel

3 = 0494631 Washer

4 = 0494872 Panel

NOTE: (adapter plate) Transmission: GS6-57DZ, GS6-53BZ (G-transmission) GS6-51DZ, GS6-51BZ (H-transmission)

5 = 0494873 Bolt

NOTE: (countersunk screws M10x30 (3 x)) Transmission: GS6-57DZ, GS6-53BZ (G-transmission) GS6-51DZ, GS6-51BZ (H-transmission)
