Operation CHARM
: Car repair manuals for everyone.
Home
>>
BMW
>>
2012
>>
650i xDrive Coupe AWD (F13) V8-4.4L Turbo (N63)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>

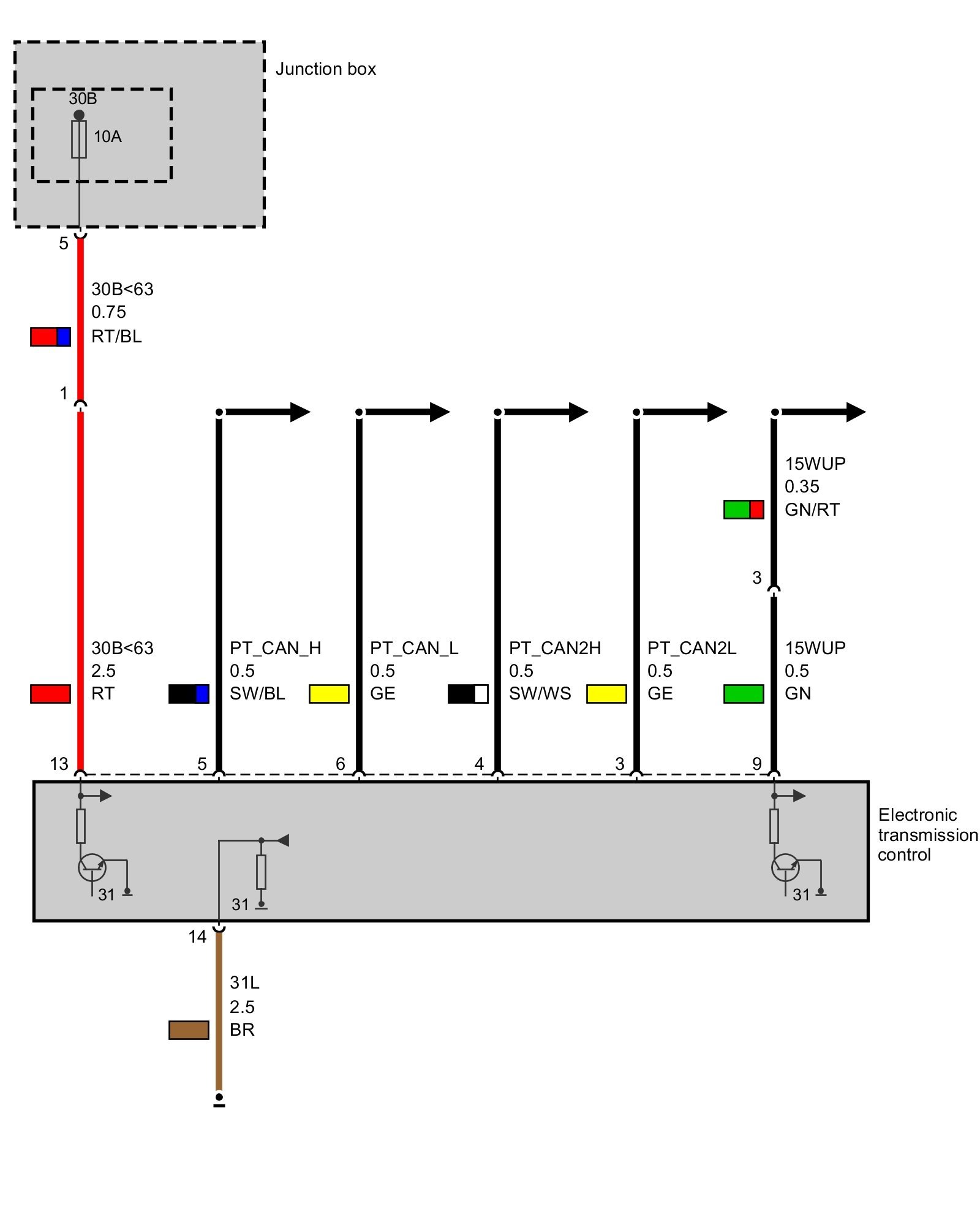

Transmission Control
Transmission Control
Transmission Control
Auto Up to 06/12
