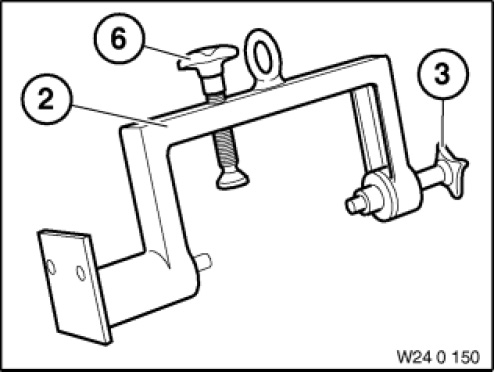

24 0 150 Mounting Bracket

24 0 150 Clip

0491644

MW







NOTE: (Mounting bracket) For mounting the transmission on the assembly stand

Consisting of:

6 = 0493913 Spindle

NOTE: With synchronizing key, transmission: All

3 = 0491645 Shaped part

NOTE: (Shaped part) For mounting the transmission / transmissions: A5S 310Z

2 = 0491646 Frame

NOTE: (Main frame)

3 = 0491647 Spindle

NOTE: (Spindle with rotary handle)

3 = 0491648 Bolt

NOTE: (Mounting bolts)

3 = 0491649 Bush

NOTE: (Spacer bush for spindle) Transmissions: A4S 310R
