24 0 200 Support

24 0 200 Fixture

0495446

MW







NOTE: For mounting gearbox on assembly stand.

SI number: 01 27 06 (328)

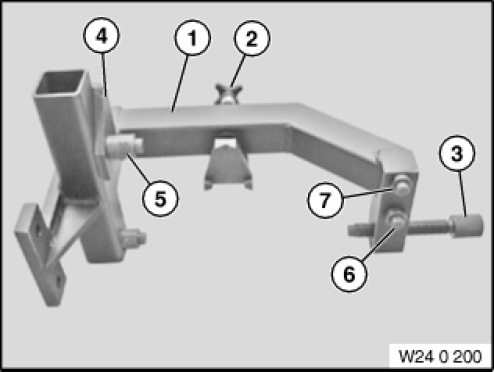

Consisting of:

1 = 0495488 Basic body

2 = 0495489 Spindle

NOTE: (Spindle with synchronizing key)

3 = 0495490 Spindle

NOTE: (Spindle with screw)

4 = 0495491 Shaped part

NOTE: (Shaped part)

5 = 0495492 Adapter

NOTE: (Adapter (long))

6 = 0495493 Adapter

NOTE: (Adapter (medium))

7 = 0495494 Adapter

NOTE: (Adapter (Short))
