Heads Up Display Unit: Service and Repair

62 30 010 Removing And Installing/Renewing Head-up Display







IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESP protection).







IMPORTANT:
Comply with notes and instructions on handling optical fibres.
Risk of damage.
Do not scratch lens of head-up display.







Necessary preliminary tasks:
- Remove instrument panel trim

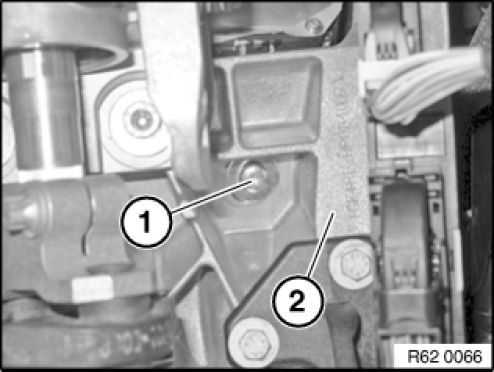

Release screw (1) on carrier housing (2) at bottom.

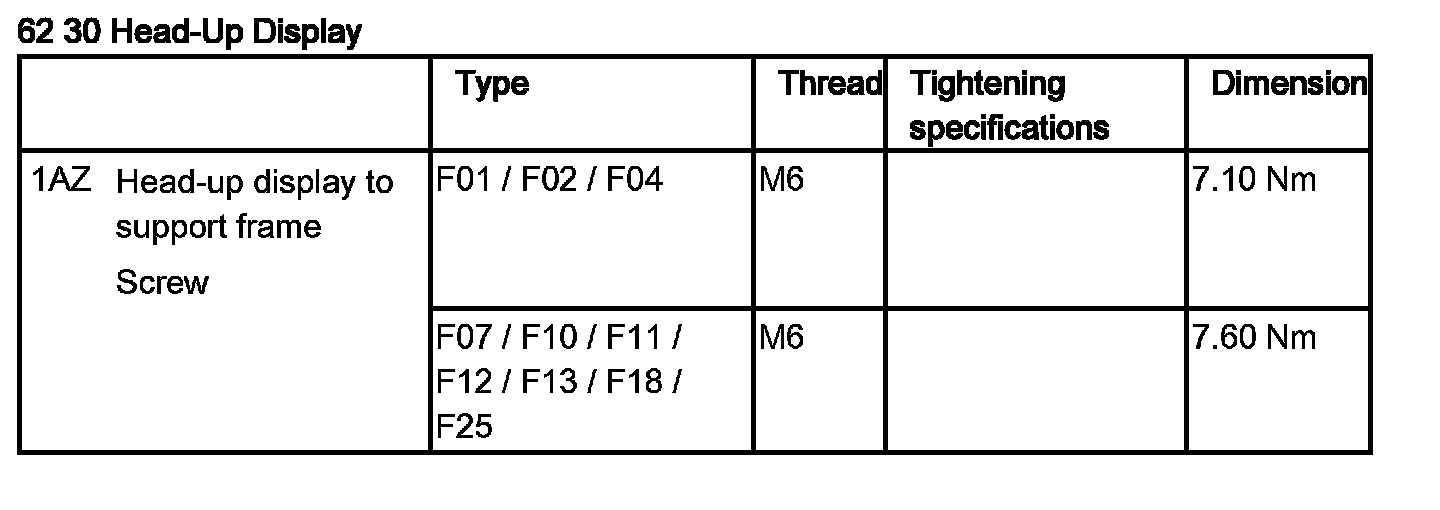

Tightening torque 62 30 1AZ.







Remove sound insulation (1) from head-up display (4).
Disconnect plug connections (2).
Release screws (3).
Tightening torque 62 30 1AZ.
Carefully feed out head-up display (4) in upward direction.

Installation note:
Clean lens of head-up display.

Adjust head-up display.







Replacement:
Carry out vehicle programming/encoding.
