Access Cover: Service and Repair

Removing engine cover (N63)

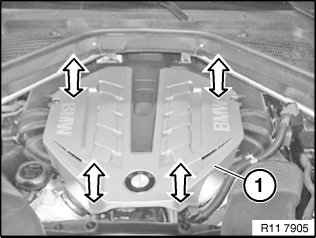

Raise engine cover (1) at the four points (see arrows) and in upward direction.

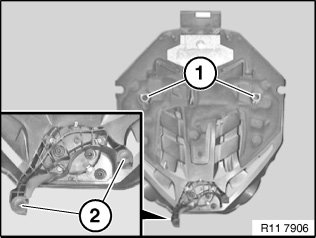

Check lock (1) for damage.

Check lock (2) for damage.

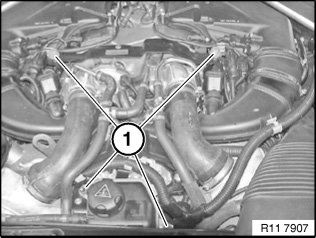

Apply a light coating of antiseize agent to take-ups (1).





Assemble engine
