51 16 063 Removing and Installing/Replacing Inside Mirror (Overview)

51 16 063 Removing And Installing/Replacing Inside Mirror (Overview)







IMPORTANT:
Rear-view mirrors with modified mirror base are installed starting with series launch F20 and all following new productions.
Observe new repair instructions.

Further introduction dates:

F01, F02, F03, F07, F10, 07/2012
F11, F12, F13, F18
F25 03/2012

NOTE: If the document for the selected model is not required or not approved, the following message will be displayed when clicking on the "cross-reference": "No additional documents available in the current vehicle context".

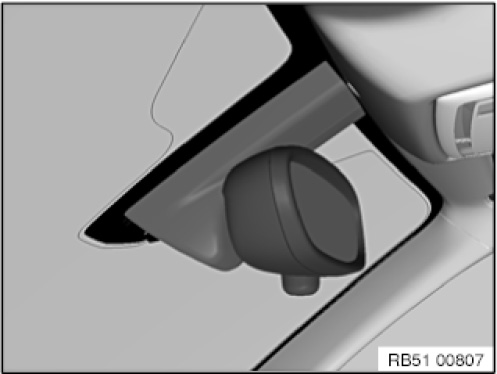

Distinguishing feature:
(A) old version, small mirror base (1) with round base plate on windscreen
(B) new version, large mirror base (2) with square base plate on windscreen

NOTE: Dismantling of mirror cap is identical on both versions.

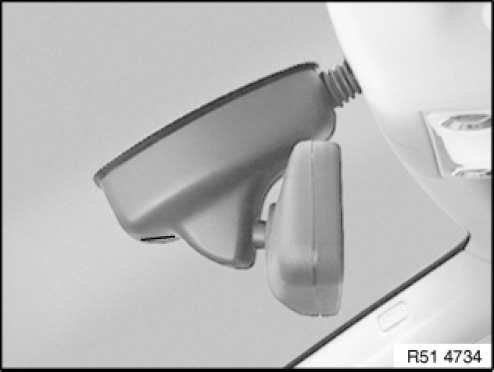

Version with mirror arm end cap:
- old version






Version with mirror arm end cap:
- New version

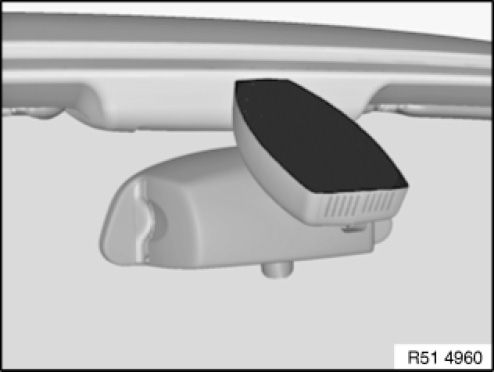

Version with rain sensor:
- old version
- new version

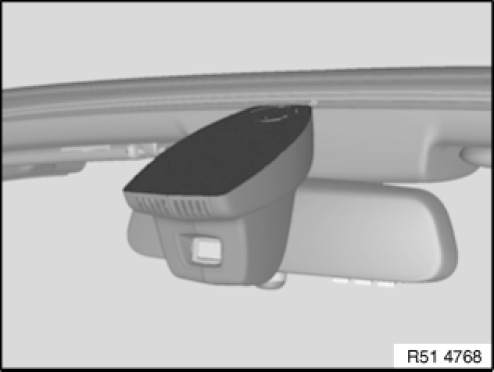

Version with high-beam assistant:
- old version
- new version







Version with Toll interior mirror for Japan:
- old version
- new version
