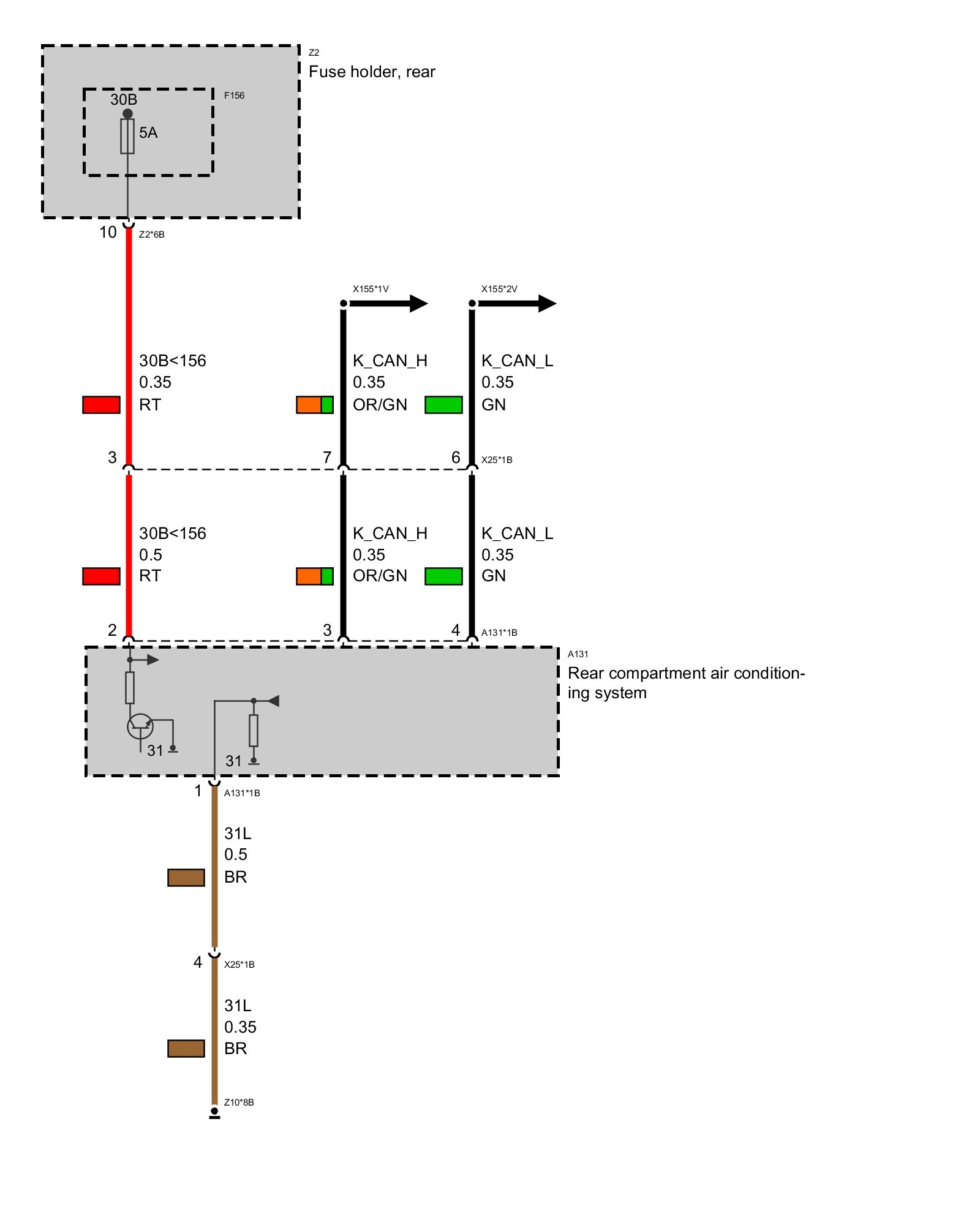

Power Supply, Rear Air Conditioning System
Power Supply, Rear Air Conditioning System
Power Supply, Rear Air Conditioning System
