Suspension System - Groaning Noise From Front Axle

SI B31 03 12
Front axle

December 2012
Technical Service

SUBJECT
Groaning Noise from Front Axle

MODEL
F01
F02
F06
F07
F10
F12
F13

With xDrive to 5/31/2012

SITUATION
Groaning noises are heard from the front axle area while maneuvering at low speeds (e.g., parking lot maneuvers) or over uneven road surfaces.

CAUSE
Hydraulic mount in tension strut

PROCEDURE
Confirm the groaning noise is coming from the front axle area and isolate to either the drivers or passengers side. Replace the tension strut with hydraulic mount for the affected side, following the Repair Instruction 37 12 050.





PARTS INFORMATION

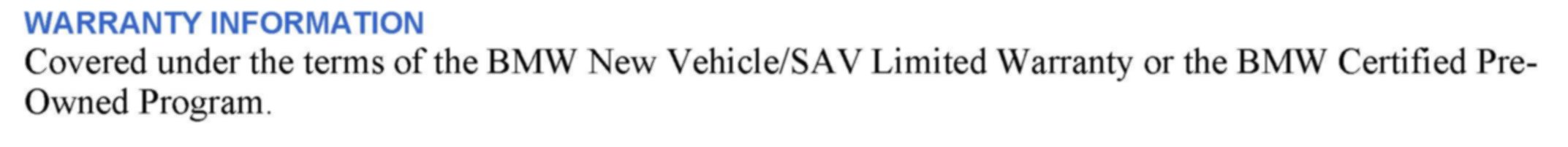

WARRANTY INFORMATION
