Home >> Buick >> 1991 >> Roadmaster V8-305 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> With Manual Air Conditioning

With Manual Air Conditioning

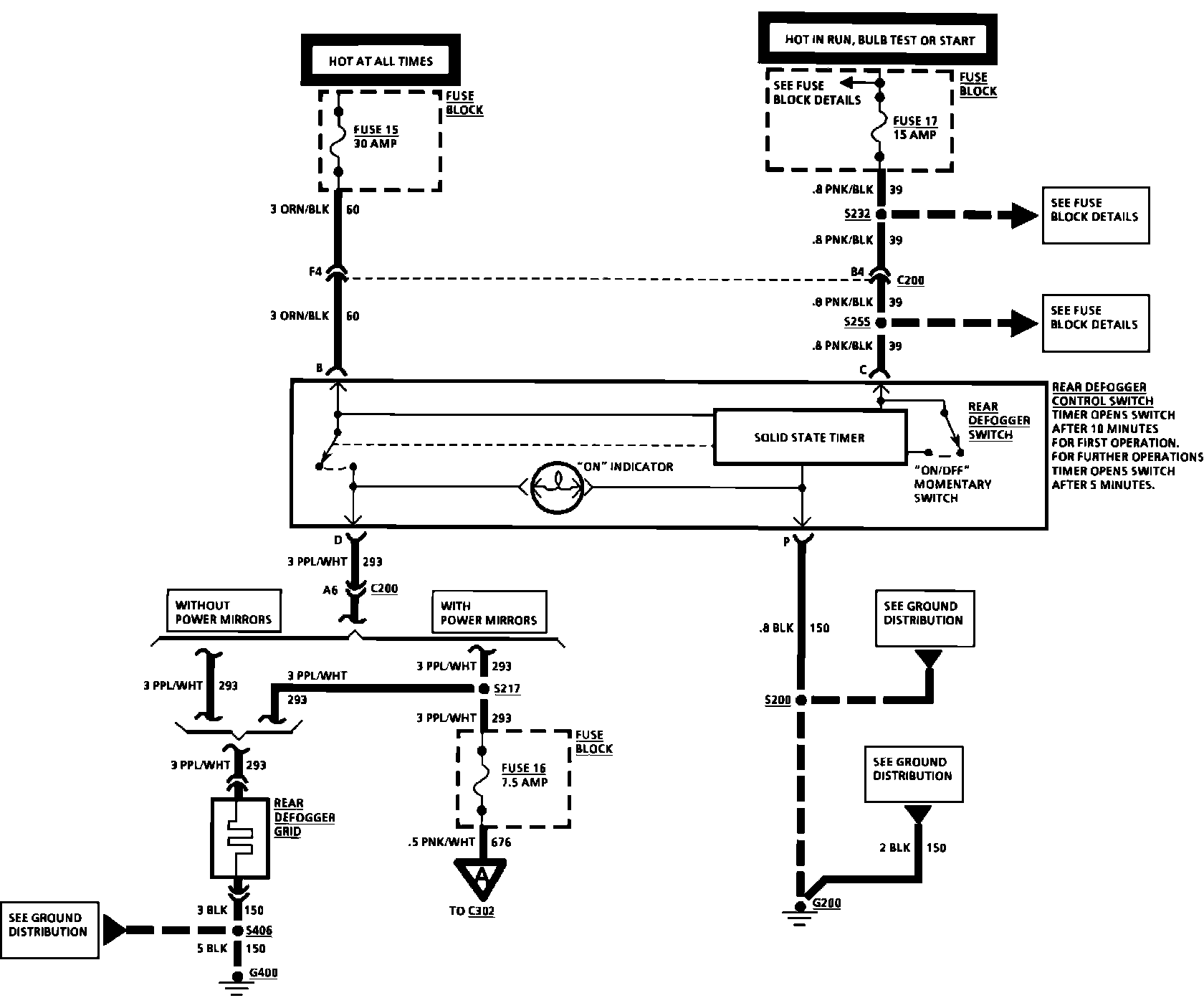

Heated Mirrors & Rear Window Defogger (Manual A/C):

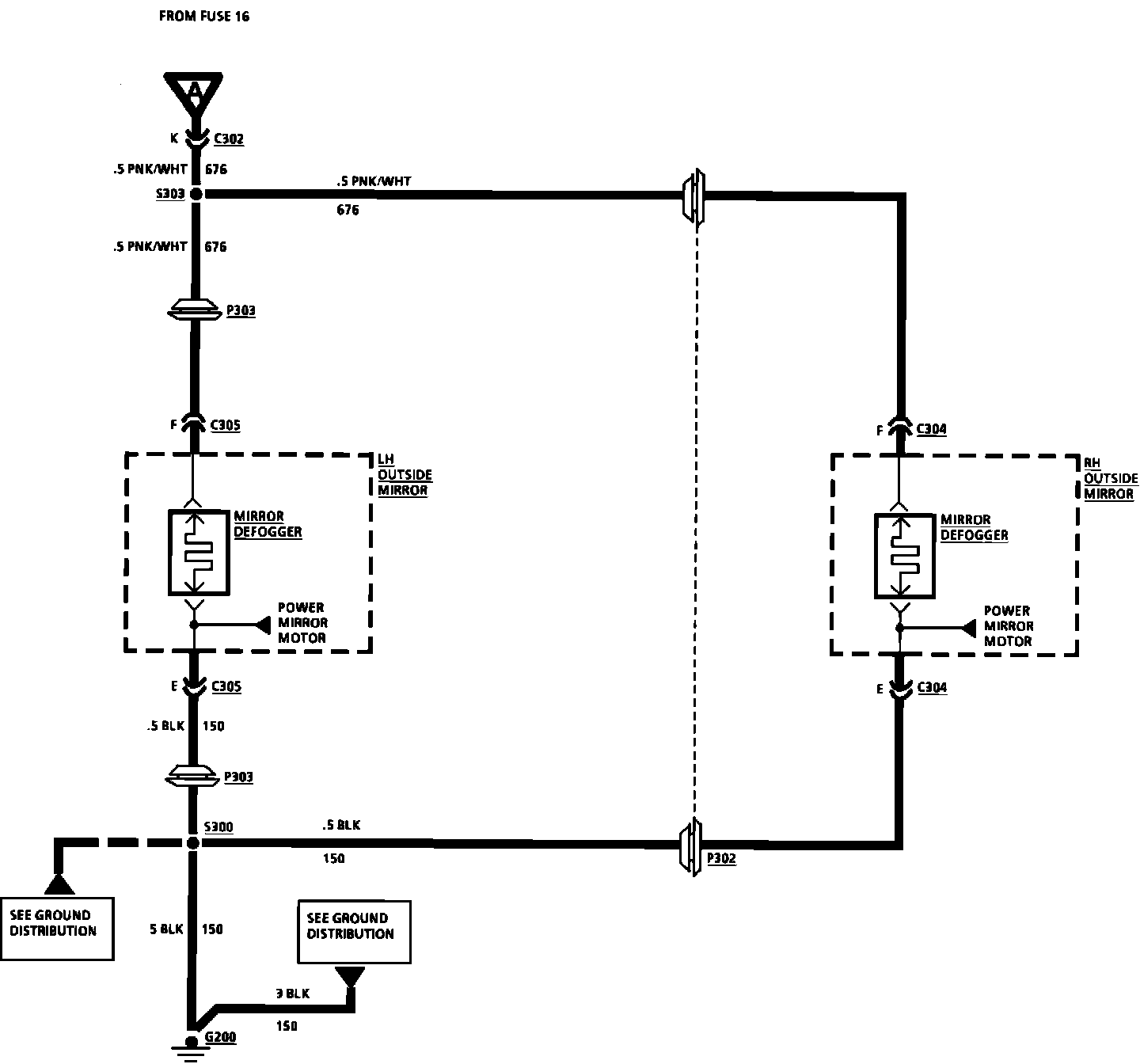

Heated Mirrors & Rear Window Defogger:
