Tachometer

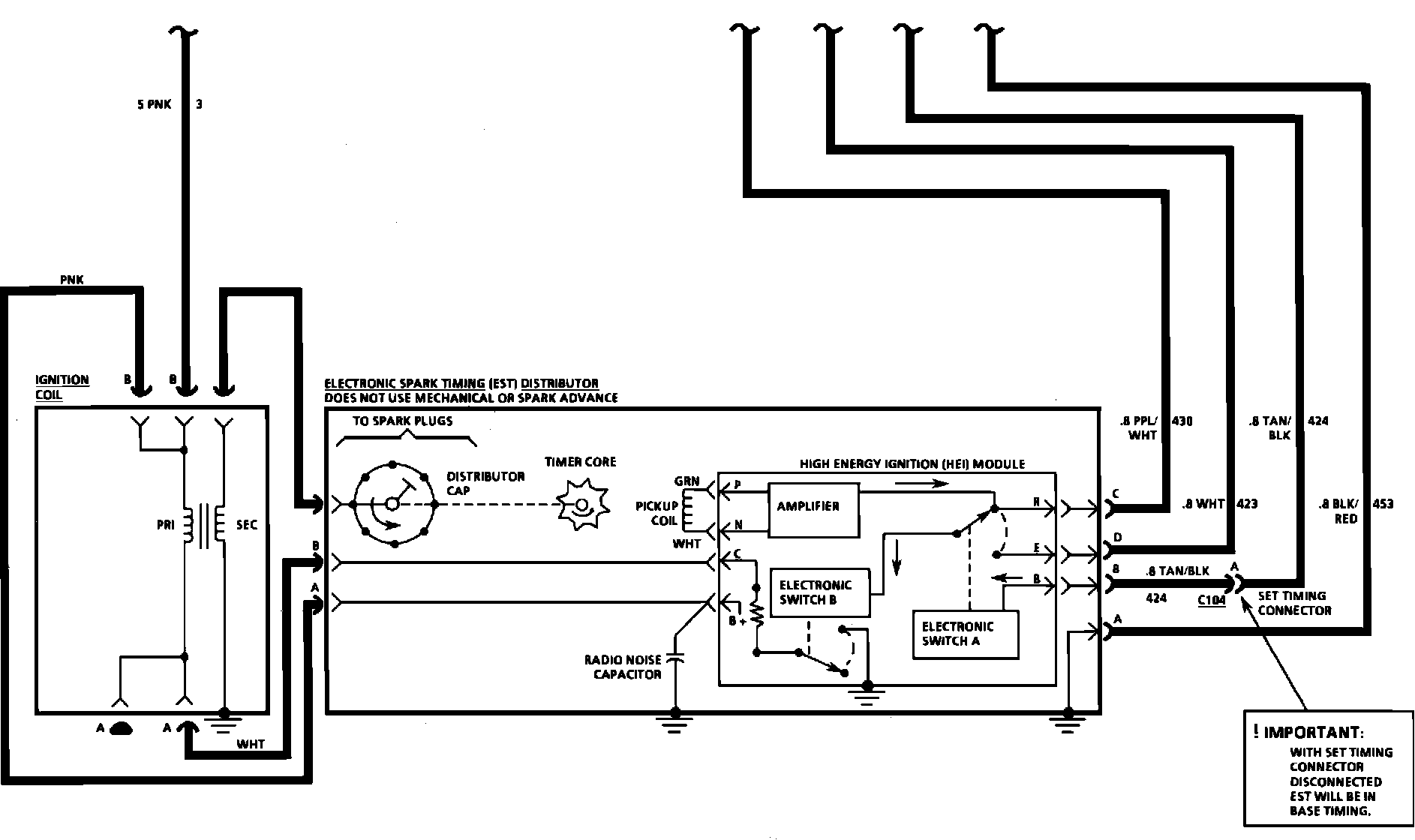

Throttle Body Injection (Ignition, Spark Control & Tachometer):

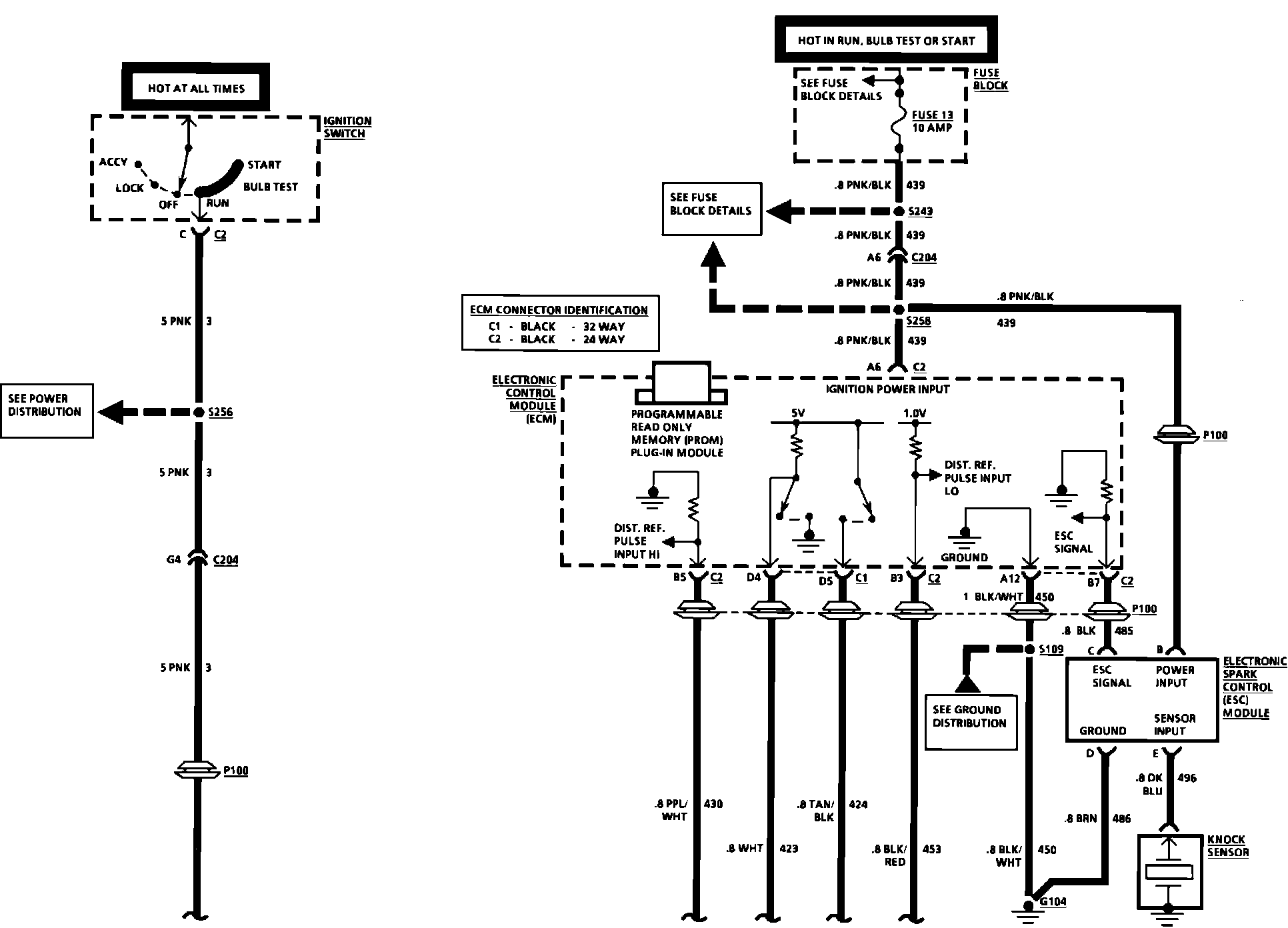

Throttle Body Injection (Ignition, Spark Control & Tachometer):
