Home >> Buick >> 1991 >> Roadmaster V8-305 5.0L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Heating and Air Conditioning >> With Electronic A/C

With Electronic A/C

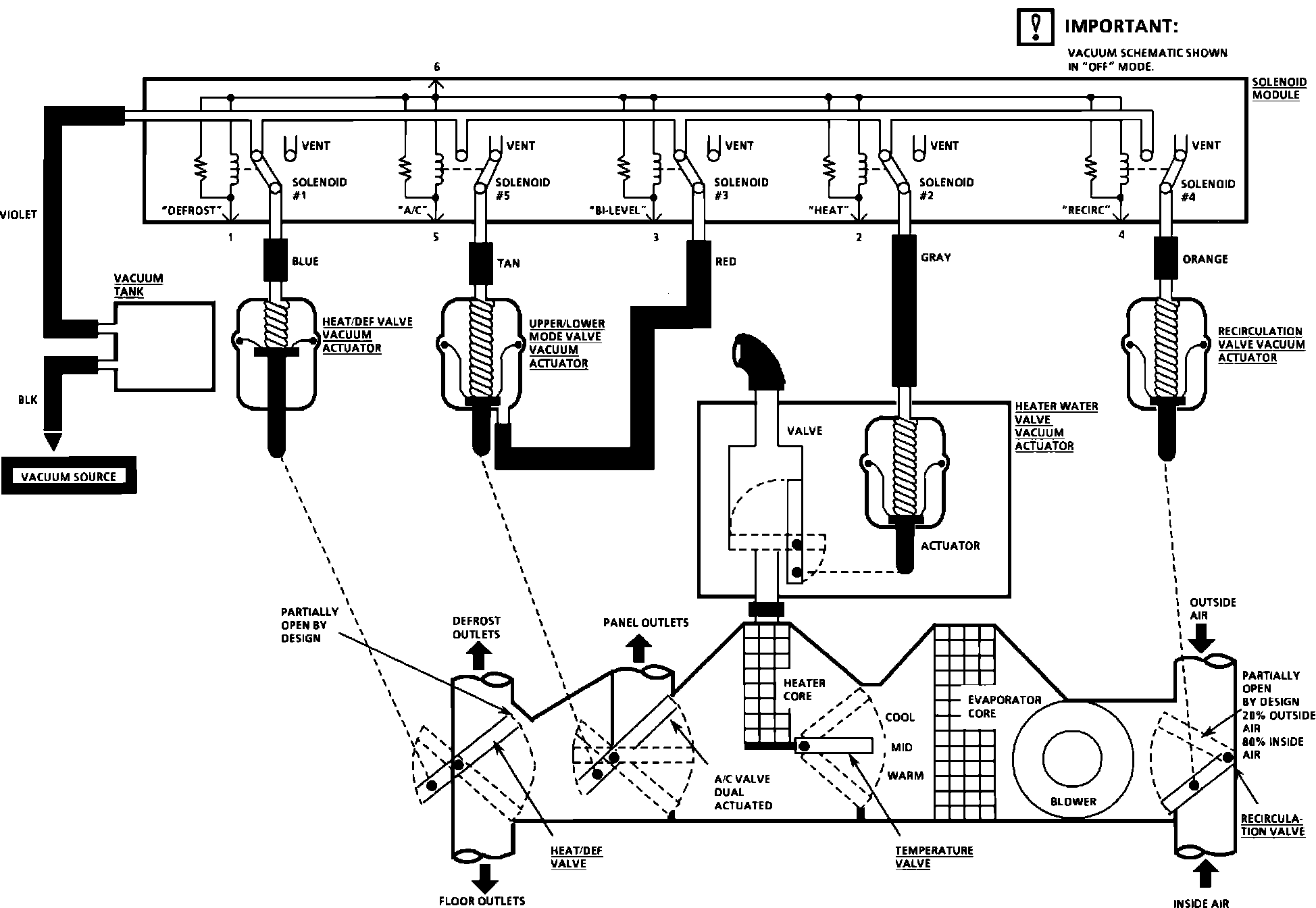

Air Conditioning: Air Delivery (Electronic A/C):
